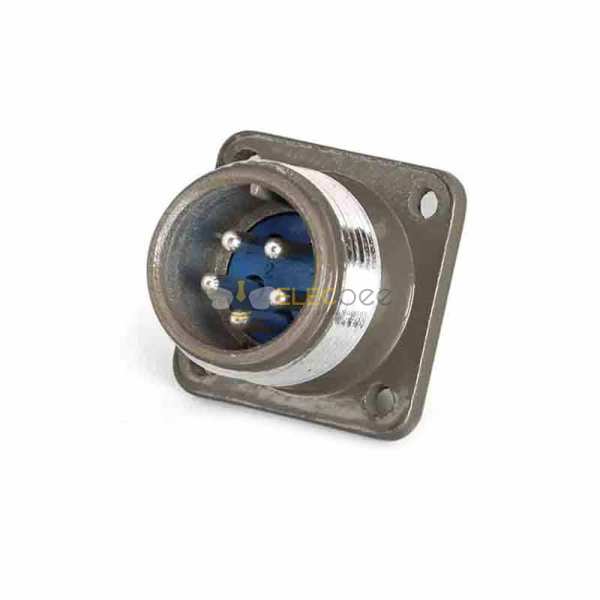

P20 5-Core Male Socket Straight Flange P20J9A Aviation Connector
- With anti-missing design
- good insulation performance
- stable working performance
- Simple structure, convenient user wiring
- Easy installation
- effective cost
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable
-
Terminal type
Solder Type
-
Installation characteristics
4 Hole Flange
-
Gender
Female
-
direction
Straight
-
Connector Type
Socket
-
Number of Positions
5pin
-
Continuous plating
Gold
-
Wiring Type
Solder Type
- Description
P20 cable connector
The hole place is arranged (Comply with the direction of the needle):
Technical parameters:
| NOT. of contacts |
2 |
3 |
4A |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
|
rated current/wattage |
20A-250V |
20A-250V |
10A-150V |
15A-250V |
10A-150V |
10A-150V |
10A-150V |
3A-125V |
3A-125V |
3A-125V |
3A-125V |
|
Operating limit voltage (AC.V.rms) |
250 |
250 |
250 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
With resistance voltage (AC. V.rms) 1 minute |
2000 |
2000 |
2000 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Insulation resistance (Ma MIN.) at DC 500V |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
1500 |
1500 |
1500 |
1500 |
|
Contact resistance (MQ MAX.) AT DC 1A |
1 |
1 |
1 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Welding cup mouth opening |
2 |
2 |
2 |
1.7 |
1.7 |
1.7 |
1.7 |
1.2 |
1.2 |
1.2 |
1.2 |
|
weld inter diameter |
2.5 |
2.5 |
2.5 |
1.6 |
1.6 |
1.6 |
1.6 |
1 |
1 |
1 |
1 |
Material and specifications:
| coupling |
threaded coupling |
Terminatton |
Welding |
|
shell material |
Zinc alloy with chromotea |
mating cycle |
500 |
|
insert material |
baked goods |
Temperature range |
-20 A +85oC |
|
contact material |
copper (silver/gold) |
wire diameter |
6 by 12,5 mm |
mounting way:
