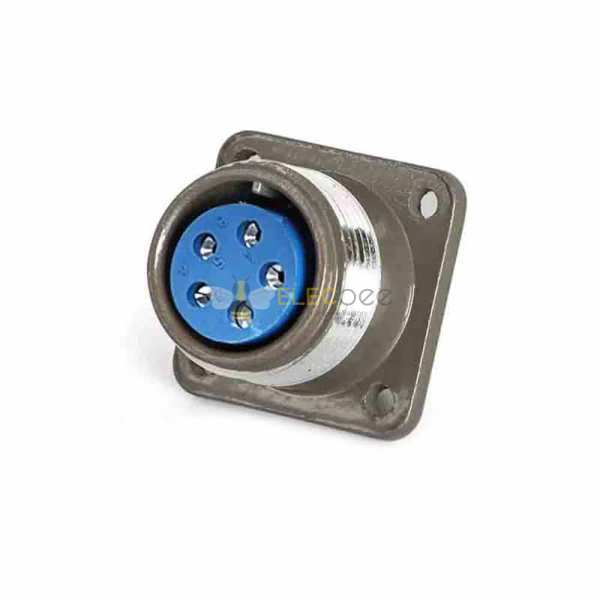

P20 5-Pin Female Socket Reverse Flange P20K10A Aviation Connector

Name: P20 5-Pin Female Socket Reverse Flange P20K10A Aviation Connector
Brand: Elecbee
SKU: EB-401-1057-L
Price: 1.52 USD
Availability: InStock

$4.99

SKU: EB-401-1057-L

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$1.45

10-19 PCS

$1.37

20-99 PCS

$1.22

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

With anti-missing design
good insulation performance
stable working performance
Simple structure, convenient user wiring
Easy installation
effective cost

Contact Sales

P20 5-Pin Female Socket Reverse Flange P20K10A Aviation Connector

EB-401-1057-L

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
Terminal type

Solder Type
Installation characteristics

4 Hole Flange
Gender

Female
direction

Straight
Connector Type

Socket
Number of Positions

5pin
Continuous plating

Gold
Wiring Type

Solder Type

Description

P20 cable connector

The hole place is arranged (Comply with the direction of the needle):

Technical parameters:

NOT. of contacts	2	3	4A	4	5	6	7	8	10	12	14
rated current/wattage	20A-250V	20A-250V	10A-150V	15A-250V	10A-150V	10A-150V	10A-150V	3A-125V	3A-125V	3A-125V	3A-125V
Operating limit voltage (AC.V.rms)	250	250	250	200	200	200	200	200	200	200	200
With resistance voltage (AC. V.rms) 1 minute	2000	2000	2000	1500	1500	1500	1500	1500	1500	1500	1500
Insulation resistance (Ma MIN.) at DC 500V	2000	2000	2000	2000	2000	2000	2000	1500	1500	1500	1500
Contact resistance (MQ MAX.) AT DC 1A	1	1	1	3	3	3	3	3	3	3	3
Welding cup mouth opening	2	2	2	1.7	1.7	1.7	1.7	1.2	1.2	1.2	1.2
weld inter diameter	2.5	2.5	2.5	1.6	1.6	1.6	1.6	1	1	1	1

Material and specifications:

coupling	threaded coupling	Terminatton	Welding
shell material	Zinc alloy with chromotea	mating cycle	500
insert material	baked goods	Temperature range	-20 A +85oC
contact material	copper (silver/gold)	wire diameter	6 by 12,5 mm

mounting way:
