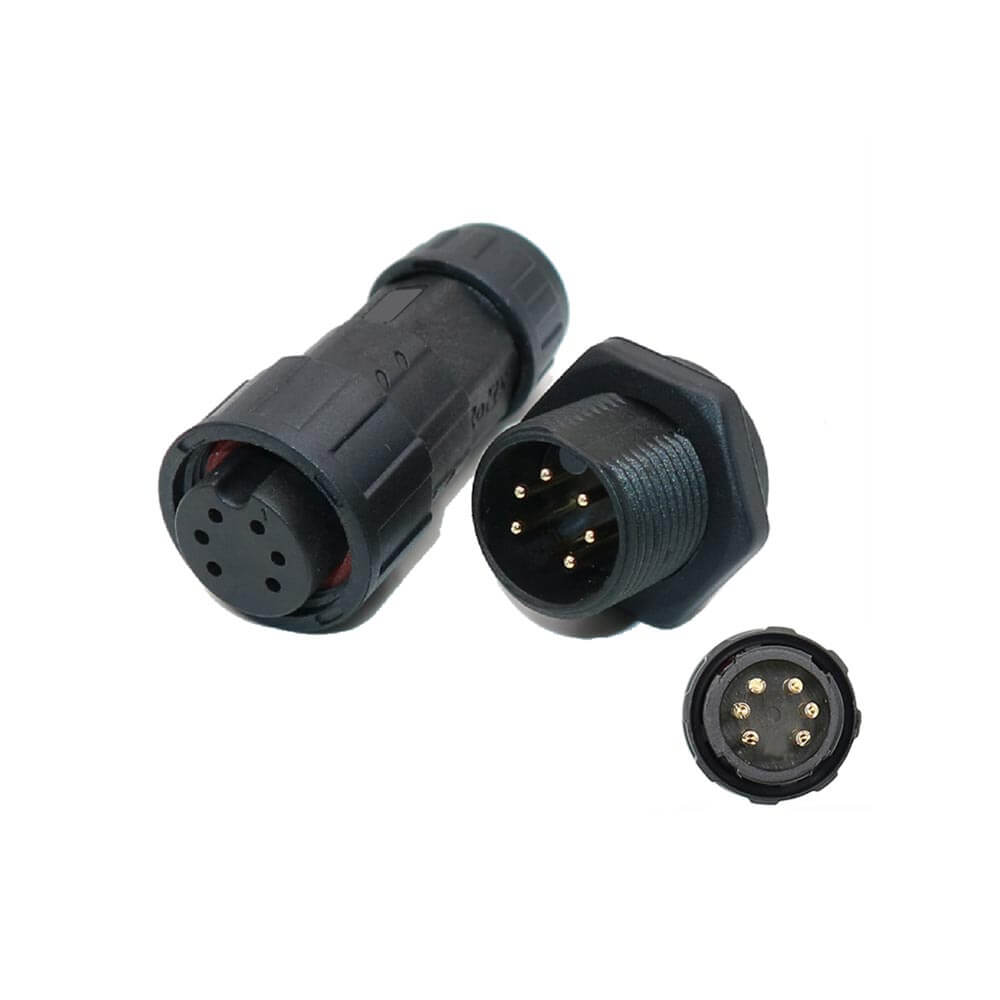

M19 Battery Connector Male and Female Aviation Plug 6-Pin Front Panle Mount Waterproof Connector Led Power Connector
Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.
Product Name: M19 Battery Connector Male and Female Aviation Plug 6-Pin Front Panle Mount Waterproof Connector Led Power Connector
Rated Current and Voltage
2 Pin: 500V, 15A
3 Pin: 500V, 15A
4 Pin: 500V, 15A
5 Pin: 300V, 10A
6 Pin: 110V, 5A
7 Pin: 110V, 5A
8 Pin: 110V, 5A
9 Pin: 60V, 5A
10 Pin: 60V, 5A
11 Pin: 60V, 5A
12 Pin: 60V, 5A
Cable Wiring Type:
Solder Type: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Pin
Screw Type: 2, 3, 4 Pin
Contact material: Copper-plated golden
Cable Wiring Method: Solder Type
Withstand voltage: 1500V
Protection grade: IP68
Terminal material: copper, gold plated
Contact resistance: < = 5m Ω
Connector material: Nylon / PVC
Test temperature: - 40 ℃ - + 105 ℃
Flame retardant grade: UL94V-0
Main features of the product:
1. Safe thread insertion and extraction system is more firm and reliable;
2. Waterproof connection, assembly, and docking (IP68)
3. A wide range of models for customers to choose from;
4. Welding, solid pin core
5. High-density installation saves space;
6. The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Panel Mount
-
Installation characteristics
Front mount
-
Gender
Male and Female (one Pair)
-
direction
Straight
-
Connector Type
M19
-
Number of Positions
6 pin
-
Docking method
Thread
-
waterproof level
IP68
-
Wiring Type
Solder Type
