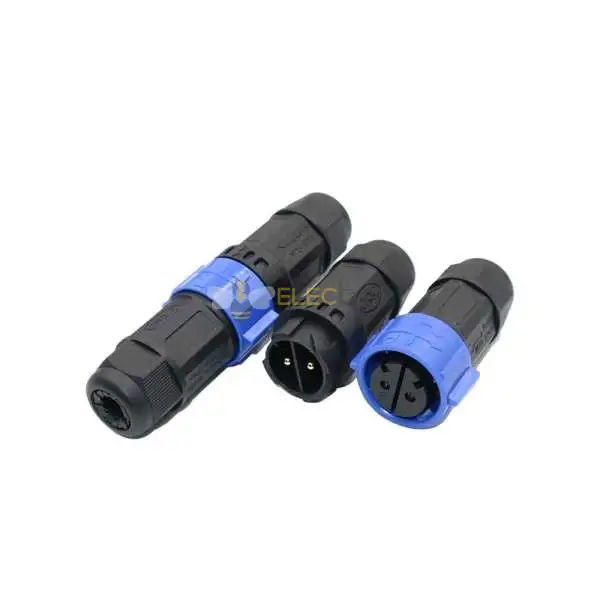

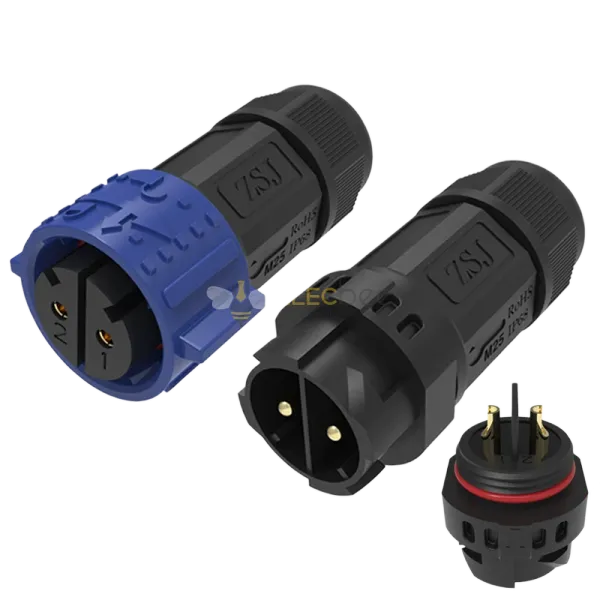

M25 Bayonet Waterproof Connector 2-Core Nylon Material Solder Type 35A Led Power Connector
Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.
Product Name: XXX
Rated Current and Voltage
2 Pin: 500V, 35A
3 Pin: 500V, 35A
4 Pin: 500V, 35A
5 Pin: 500V, 35A
Cable Wiring Type:
Solder Type: 2, 3, 4, 5 Pin
Screw Type: 2, 3, 4, 5 Pin
Contact material: Copper-plated golden
Cable Wiring Method: XXXX Type
Withstand voltage: 1500V
Protection grade: IP68
Terminal material: copper, gold plated
Contact resistance: < = 5m Ω
Contact plastic: nylon
Waterproof apron: Silicone
Test temperature: - 40 ℃ - + 105 ℃
Flame retardant grade: UL94V-0
Main features of the product:
1. Bayonet Connection, quick connect and disconnect, simple and convenient.
2. Waterproof connection, assembly, and docking (IP68)
3. A wide range of models for customers to choose from;
4. Solid pin core
5. High-density installation saves space;
6. The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;
