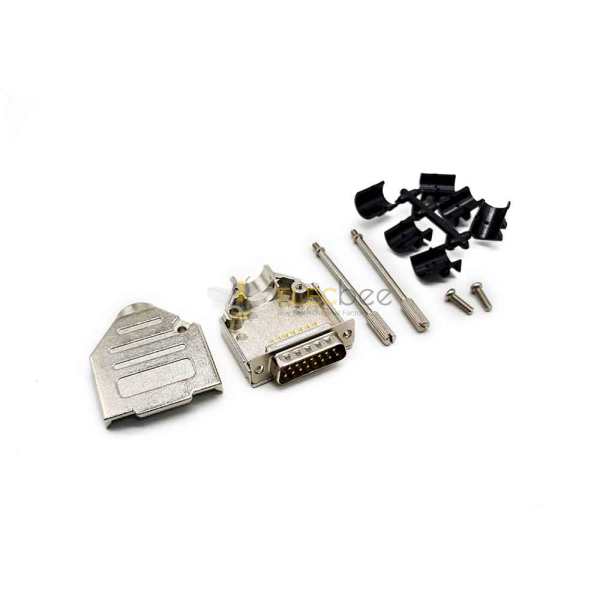

D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell

D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell

Name: D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell
Brand: Elecbee
SKU: EB-607-0366-V
Price: 6.00 USD
Availability: InStock
Rating: 95 / 20 (20 reviews)

$6.00

SKU: EB-607-0366-V

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$5.70

10-19 PCS

$5.13

20-99 PCS

$4.10

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

D SUB 15Pin Connector Straight Male Solder Type with Metal Backshell

EB-607-0366-V

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable/PCB Mount/Panel Mount
Installation characteristics

Front Open Screwlock(4-40)
Gender

Male
direction

Straight
Connector Type

Machined D-sub
Number of Positions

15 pin
Continuous plating

machined pin
filter

No
waterproof level

Not Waterproof
Continuous plating

Gold

Description

Electrical Characteristics

Voltage Rating :300 V AC/rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance：5000MΩ
Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

DF: -67°F (-55°C) to + 257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
