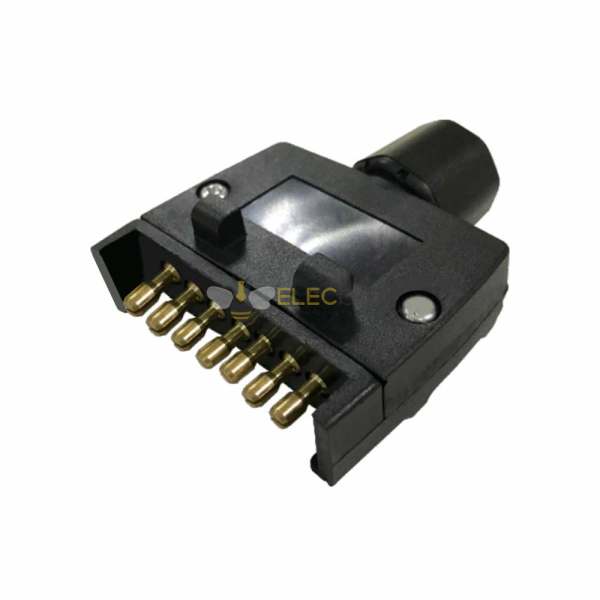

7 Pin 12V Socket/Plug Truck Cable Connector Australian Style Trailer Signal Light Display
Standard: European trailer connector
Production process: injection molding
Characteristics: Waterproof
Contact material: copper
Insulator material: engineering plastic
Material: Nylon
Voltage output: 24V
Main function: Connect trucks and power supplies, suitable for displaying trailer signal lights
Application scope: Commercial vehicles/trailers/RV/trucks/container trucks/semi-trailers/sedans/ships, etc
- Specification
-
Product Attribute
Attribute Value
Search
-
Application
Automotive
-
Number of Positions
7pin
-
waterproof level
IP65
-
Voltage
12V
-
Contact Material
铜
-
外壳材质
塑胶壳
- Description
Specs:
7 Pin Lighting Connections - 12 N Black Cable Function
* PIN 1 - Yellow Wire (Left/H Direction Indicator)
* PIN 2 - Blue Wire ( Rear Fog Lamps )
* PIN 3 - White Wire ( Earth Return )
* PIN 4 - Green Wire (Right/H Direction Indicator)
* PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
* PIN 6 - Red Wire (Brake lights)
* PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
13 Pin Lighting Connections – Cable Function
* Pin1 - Yellow Wire ( Left Indicator )
* Pin2 - Blue Wire ( Fog Light )
* Pin3 - White Wire ( Earth Return )
* Pin4 - Green Wire ( Right Indicator )
* Pin5 - Brown Wire ( Right tail / Side Light )
* Pin6 - Red Wire ( Brake / Stop Lights )
* Pin7 - Black Wire ( Left tail / Side Light )
* Pin8 - Pink Wire ( Reversing Light )
* Pin9 - Orange Wire ( 12V Permanent power from battery )
* Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
* Pin11 - White / Black Wire ( Earth for Terminal 10 )
* Pin 12 - White / Blue Wire ( NOT usually used )
* Pin 13 - White / Red Wire ( Earth for Terminal 9 )
