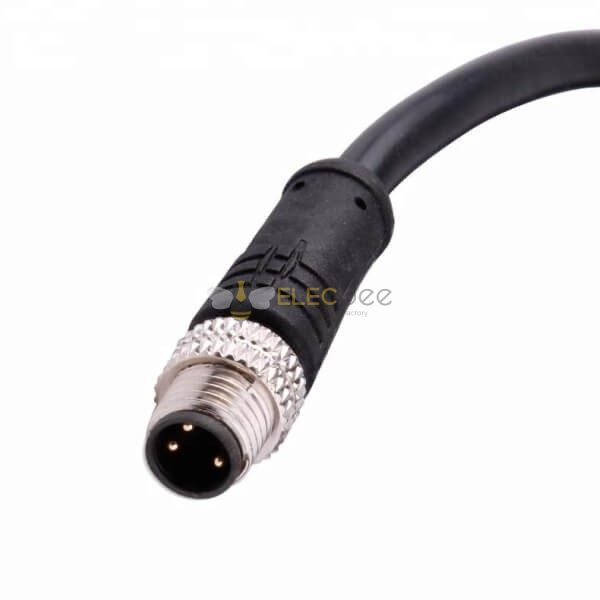

10 pcs M8 3pin Male Types Plug IP67 Waterproof Molding Type M8 3 Cores Male Connector With 1M 24AWG Wire
Features:
- M8,3Pin, Cable Cordsets, Single Ended Cable, Male, For Cable, Solder Type, Non-Shield,Waterproof,24AWG,1M
- thread locking mechanism, 8mm threaded joint;
- anti vibration locking design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
code
A code
-
Number of Positions
3
-
Gender
Male
-
Shell Feature
Straight
-
Shielding
Unshiled
-
Cable Length
1m
-
Type of harness
Single ended
- Description
Appliance:
- Miniature sensors
- Industrial camera
- Electrical bike
- Packaging, Labeling & Logistic
- Factory automation and fieldbus module
M8 Overmolded Cables
The M8 overmolded cables provide safely and reliably communication between devices and across networks within an industrial environment. A ready-to-plug solution for versatile systems to be quickly and easily established.
Ideal for Ethernet & Fieldbus application with a wide selection of connector configurations and jacketed cable materials.
DIRECT DEAL
EASY ASSEMBLY
QUALITY ASSURANCE
MULTI CORE OPTIONAL
| M8 Overmolded Cables | |
| Coding | A / B / C / D / T / X |
| Number of Positions | 3 / 4 / 5 / 6 / 8 |
| Gender | Male / Female / Male to Female / Male to Male / Female to Female |
| Orientation | Straight / Right Angle / Straight to Right Angle |
| Connection Type | Single Ended Cable / Double Ended Cable |
| Connector Type | M8 / M8 to M8 |
| Mounting Type | Cable |
| Termination Style | Solder Type |
- The threaded Intertace is narrow, wide and precise, stable and not loose after docking, and the transmission is more stable
- Waterproof groove design to avoid penetration
- The tough wire is not easy to detorm, wear and tear, and resist stretching and winding
- The shell is made of special PVC one-piece injection molding, which is durable
| Product Parameter | |
| Series | M8 |
| Coding | A/B |
| Connection Type | Field Wireable |
| Number of Contacts | 3/4/5/6/8 Pin |
| Gender | Male/Female |
| Orientation | Straight/Angled |
| Termination | Screw-Joint/Solder |
| Rated Current | 3A/1A |
| Operating Voltage | 60V/30V |
| Temperature Range | -25°C ~ + 80°C |
| IP Rating | IP67 |
M8 Pinout Dimension (Recommend PCB cutout):
