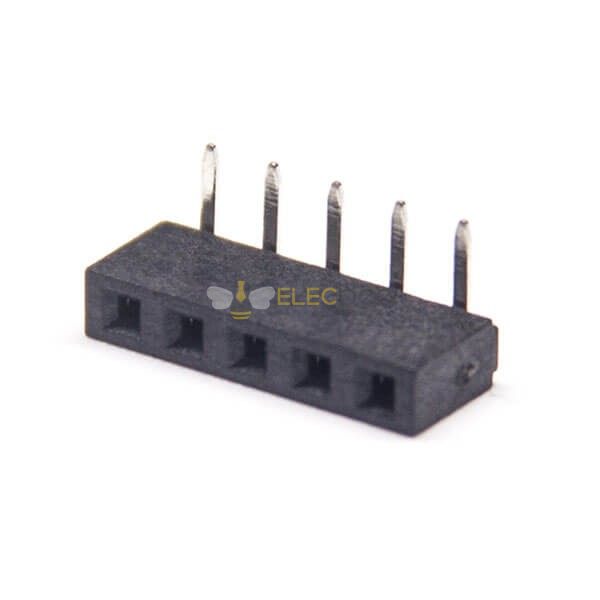

3pcs 2mm Header Right Angle 5 Pin Single Row Dip Type

3pcs 2mm Header Right Angle 5 Pin Single Row Dip Type

Name: 3pcs 2mm Header Right Angle 5 Pin Single Row Dip Type
Brand: Elecbee
SKU: 3XEB-609-0090
Price: 1.29 USD
Availability: InStock
Rating: 114 / 24 (24 reviews)

$1.29

SKU: 3XEB-609-0090

Copy to clipboard

80 Sales

24 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

3pcs 2mm Header Right Angle 5 Pin Single Row Dip Type

3XEB-609-0090

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Solder Type
Installation characteristics

Through Hole
direction

Right Angle
Number of Positions

5 pin
Continuous plating

Tin
Number of Rows

1
Insulator Colour

black
Contact Shape

Circular
spacing

2.0mm
Plastic High

4.3mm

Description

Electrical Characteristics

Current Rating: 1.5 Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Contact Material: Copper Alloy
Insulator Material: PA6T,UL 94V-0 Black

Mechanical characteristics

Durability (Gold finish)：300 mating cycles
Durability (Tin finish)：50 mating cycles
Insertion force：2N max per contact
Withdrawal Force：0.3N min per contact

Environmental and Processing

Operating Temperature: -40°C to +105°C
LCP Suitable For: IR Reflow, Wave, Manual solder
