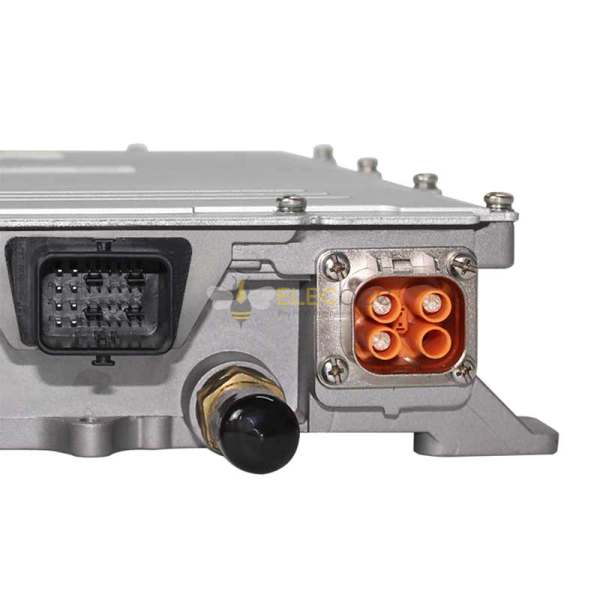

OBC Charger 2 in 1 3.3KW+1.5KW 312V (200~450V) 10A OBC+DC/DC On Board Charger Electric Vehicle
- Description
Main Features :
1.Support UDS diagnosis CAN wake-up function
2.Fully sealed process can work reliably under the conditions of -40°C-+85°C
3.Built-intemperature sensor to shut down output under hazardous operating conditions (internal 90°C)
4.Protection level IP67 Can work safely under short-term water immersion conditions
5.Heat dissipation method: air cooling / water cooling
6.Optional 12V DC/DC Converter for low-voltage equipment for electric vehicles.
Basic Specification:
1. Up to 95% power efficiency and more than 93% Full Load Efficiency
2. Wide input voltage range AC90V~AC264V 45~65 Hz available for worldwide requirements, convenient for electric-network fluctuation and vehicle exportation.
3. Intelligent temperature compensation function in the charging process, preventing the damage to the battery caused by charge-off or charge due, greatly extending the lifespan of the battery.
4. Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).
5.Operation temperature：- 40℃～85℃；Storage temperature：- 55℃～85℃；Mechanical impact and vibration grade：QC/T 895－2011，Automotive-grade seismic rating.
6. Temperature control with the built-in heat-sensing device and automatic recovery through thermal protection.
7. Multi-safety protection functions.
8. LED charge status indication with diagnosing support function.
9. Available for various kinds of batteries like LiFePO4, Lithium battery, etc., Flexible and programmable in charging mode. Equipped with Enable Control(Automatic Control) or CAN communication interface to realize real-time communication with BMS for options.
10. Input current:14A
11. Power factor：≥0.99
12. Charging control: CAN or Enable
13. Size：198(length) x 244(width) x 95(height)(fan-cooled)
14. Weight only 4.6 kg!
15. Cooling way: Enforce Air Cooling
