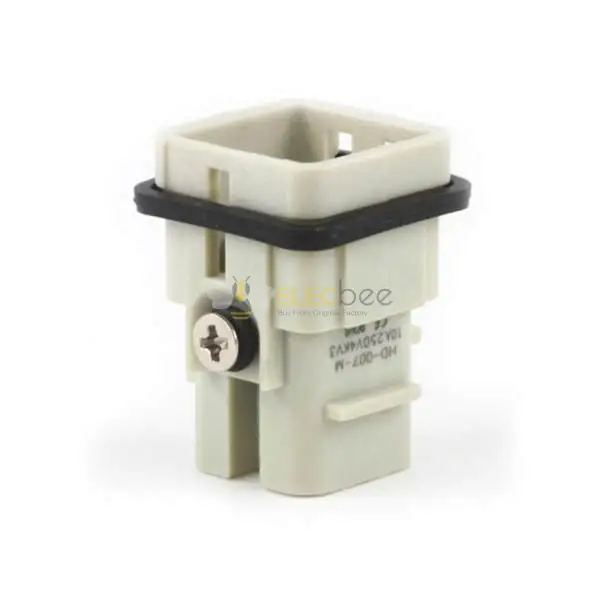

HD 7 Pin Male Insert Crimp Terminal
- HD,7,Male Contacts,公插体,PC,冷压连接,Crimp Terminal,公针,Copper Alloy,Silver
- Always the right plug-in connection for your requirements with three different series types
- Compatible connection: Housings are mounting and plug-in compatible with aluminum housings from well-known manufacturers
- Flexible combination: Variable connection technologies for contact inserts and terminal adapters
- Everything in one housing: Simply snap modular contact inserts for signals, data, power, and pneumatics onto the snap-in frame and mount them in the housing
- Reliable interfaces: All metal housings are EMC-ready with conductive surfaces and seals
Contact Sales
![](image/catalog/Connectors/IEC60309-Industry-Connector/Heavy-Duty-Connector/Heavy-Duty-Connector-Splice/hd-7-pin-male-insert-crimp-terminal-58014-0.jpg)
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
![Trusted Delivery Image](/image/catalog/Group_12880628.png?v=1692857580)
- Specification
-
Product Attribute
Attribute Value
Search
-
plug-in syndrome
HD
-
Insert Type
Male Contacts
-
Insert Material
PC
-
Contact Termination
Crimp Terminal
-
Contact Type
Male Pin
-
Contact Material
Copper Alloy
-
Contact Plating
Silver
-
Pins
7
- Description
Applications Heavy-duty power inserts and modules can be used in a wide range of high and low voltage applications in a variety of industrial applications. Due to the nature of the environment connectors often require environmental protection ratings including IP68 and IP69K. Some of the most common are:
- Automation and control
- Robotics
- Industrial cable interfaces
- Signal, power and pneumatics interfaces
- Transportation and vehicles
- Manufacturing and production
Electrical properties
Material | Polycarbonate |
Pollution level | 3 |
According to UL/CSA rated voltage | 600V |
Insulation resistance | ≥1010Ω |
Working temperature range | -40℃-+125℃ |
Flame retardant grade | V0 |
PIN | |
Material | Copper alloy |
Surface treatment | Silver plating |
Contact resistance | ≤1mΩ |
Wiring method | Screw crimping |
Connect-disconnect life | ≥500 |
