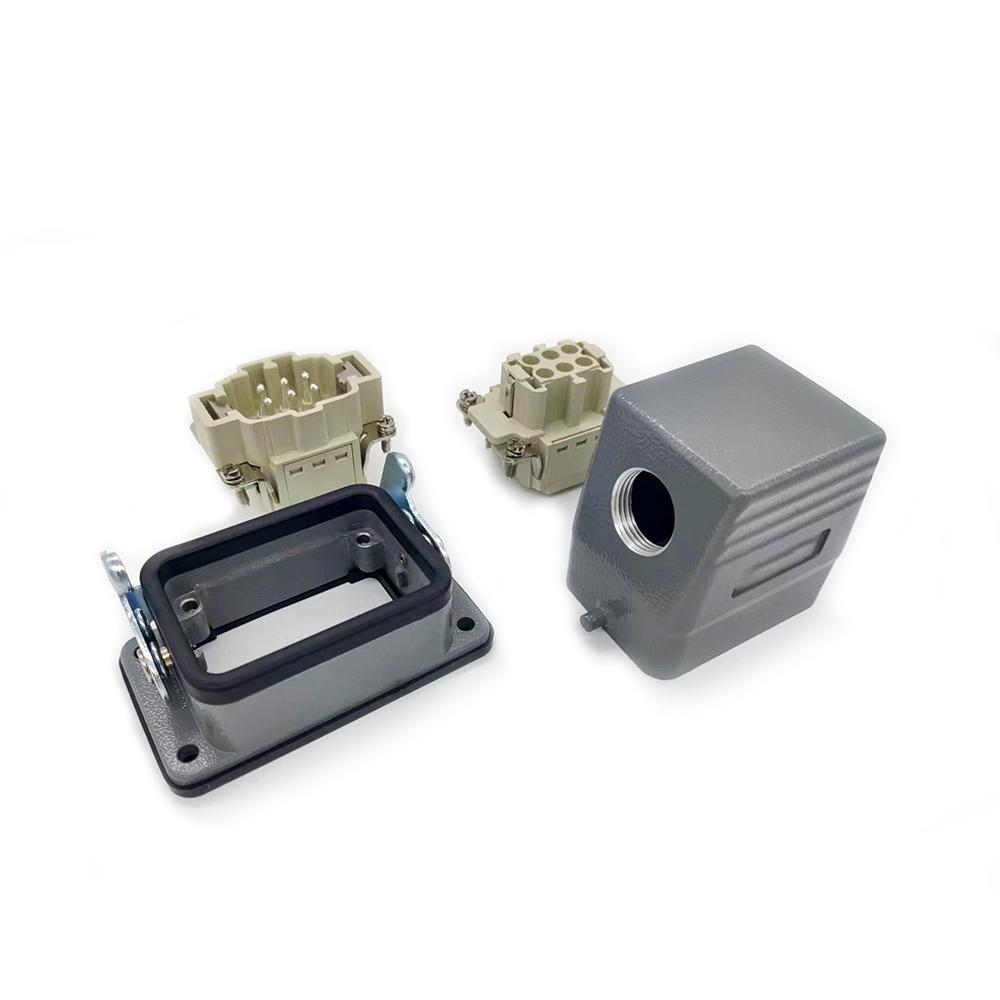

H6B Side Entry M20 Bulkhead Mounting HE 6 Pin Cage Clamp Terminal

Name: H6B Side Entry M20 Bulkhead Mounting HE 6 Pin Cage Clamp Terminal
Brand: Elecbee
SKU: EB-H6B-006-BK-1L-SE-2B-C-M20
Price: 21.61 USD
Availability: InStock

$103,31

SKU: EB-H6B-006-BK-1L-SE-2B-C-M20

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$20.53

10-19 PCS

$19.45

20-99 PCS

$17.29

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

H6B,Side Entry,2 Bolts,M20,H6B,Bulkhead Mounting,1 Locking lever,Metal Steel,HE,6,PC,Cage Clamp Terminal,Male，Female Pin,Copper Alloy,Silver
Always the right plug-in connection for your requirements with three different series types
Compatible connection: Housings are mounting and plug-in compatible with aluminum housings from well-known manufacturers
Flexible combination: Variable connection technologies for contact inserts and terminal adapters
Everything in one housing: Simply snap modular contact inserts for signals, data, power, and pneumatics onto the snap-in frame and mount them in the housing
Reliable interfaces: All metal housings are EMC-ready with conductive surfaces and seals

Contact Sales

H6B Side Entry M20 Bulkhead Mounting HE 6 Pin Cage Clamp Terminal

EB-H6B-006-BK-1L-SE-2B-C-M20

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Upper Housing Type

H6B
Upper Housing Inlet/Outlet Direction

Side Entry
Upper Housing Locking Method

2 Bolts
Thread Specification

M20
Chassis Type

H6B
Chassis Mounting Method

Bulkhead Mounting
Chassis Locking Method

1 Locking lever
Bottom Shell Locking Material

Metal Steel
plug-in syndrome

HE
Pins

6
Insert Material

PC
Contact Termination

Cage Clamp Terminal
Contact Type

Male，Female Pin
Contact Material

Copper Alloy
Contact Plating

Silver

Description

Applications Heavy-duty power inserts and modules can be used in a wide range of high and low voltage applications in a variety of industrial applications. Due to the nature of the environment connectors often require environmental protection ratings including IP68 and IP69K. Some of the most common are:

Construction machinery that requires electrical and signal connections
Textile machinery
Packaging and printing machinery
Tobacco machinery
Electric locomotives
Petrochemical electrical equipment.

Electrical properties

Type	Metal protective housing
Material	Cast aluminum
Color	Gray
Interlocking method	Metal elastic pressure closure
Sealing element	NBR
Temperature range	-40℃ ...+125℃
Intermediate level	V0
Protection level	(interlocked state, EN60529) IP65
Wiring method	Screw crimping
Pollution level	3
Insulation resistance	10²Ω
Tightening torque	0.25Nm
Pin material	Copper alloy
Surface treatment	Gold/Silver plating
