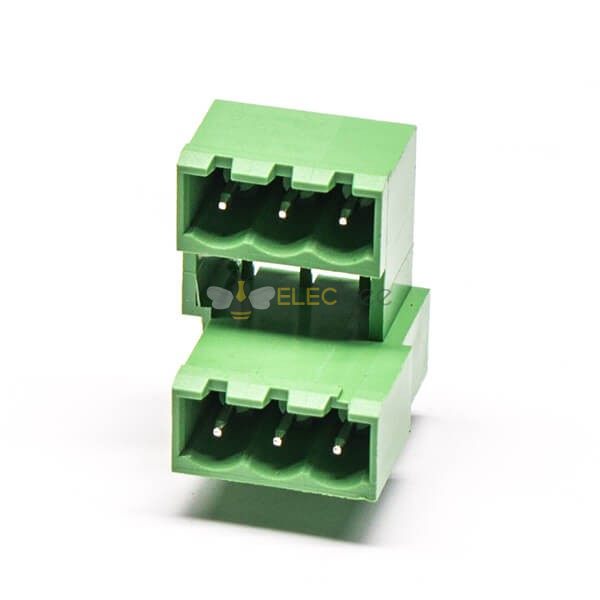

Terminal Blocks Connectors Right Angled Through Hole for PCB Mount

Terminal Blocks Connectors Right Angled Through Hole for PCB Mount

Name: Terminal Blocks Connectors Right Angled Through Hole for PCB Mount
Brand: Elecbee
SKU: EB-620-0001
Price: 1.19 USD
Availability: InStock

$1.19

SKU: EB-620-0001

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$1.13

10-19 PCS

$1.07

20-99 PCS

$0.95

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Pitch

- +

Product features:

Pluggable terminal blocks，Green,Right Angle,6pin,300V,20A,5.0mm/5.08mm，PCB Mount,Crimp
available insert direction,contact direction,piug-in direction according the requirement
A nominal current of 32 A (IEC) and a nominal voltage of 800 V (IEC) can be realized thanks to the powerful plug-in contact
Maximum safety with a touch-proof design
Simple potential distribution utilizing the double function shaft
Vibration resistance: latching accessories available

Main Application

Cable fixing
Encoding
Shield
For flange-mounting plugs and basic terminal blocks
Cable housing

Contact Sales

Terminal Blocks Connectors Right Angled Through Hole for PCB Mount

EB-620-0001

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Right Angle
Number of Positions

6 pin
Insulator Colour

green
Current

20A
Voltage

300V
spacing

5.0mm/5.08mm
Wiring Type

Press-fit

Description

Electrical Characteristics

Rate voltage:300V
Rate current:10A 15A 20A 30A
Poles:2P-24P
Withstanding voltage:AC2000V/1Min
Wire range:28-16AWG
Insulation resistance:5000MΩ/1000V

Environmental Characteristics

Temperature range:-40°C ~ +105°C
MAX soldering:+250ºC for 5 sec

Material

Strip length:7mm
Poles:2P-24P
Pin header:Brass,Tin plated,Ni piated
Housing:PA66.UL94-0
