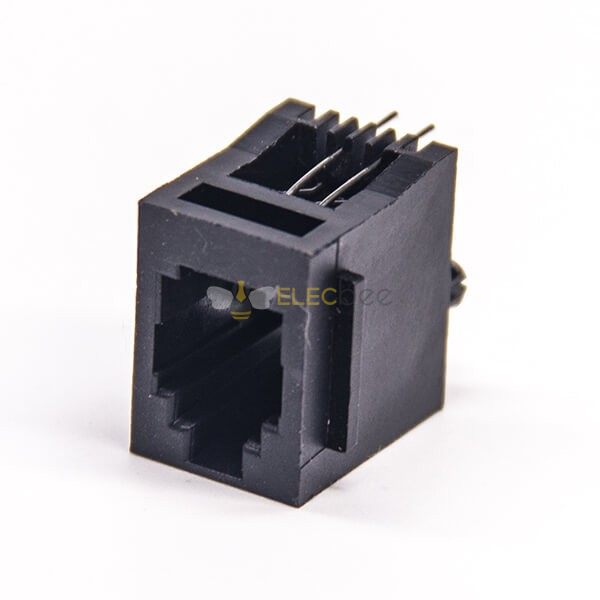

4P4C Couplereth Etherrnet Network Modular Connector Unshielded Through Hole
Features:
- RJ9 Jack,4P4C,Single Port,1*1,Angled,Gold,Through Hole,PCB Mount,Unshielded,without LED,without Filtered
- Comprehensive range for all application needs;
- Stackable side by side design;
- Supports wide variety of low-speed networking applications;
- Supports high-speed Gigabit Ethernet applications;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
direction
Right Angle
-
Shield
Unshielded
-
LED
No
-
filter
No
-
Connector Type
Socket
-
Port number
Single
-
waterproof level
Not Waterproof
-
Continuous plating
Gold
-
Number of contacts
4p4c
-
Terminal type
Through Hole
-
Number of Rows
1×1
- Description
Applications:
- Routers
- Ethernet switches
- ATMs
- Point of sales terminals
- Vending machines
- Set-top boxes
- Technology analysis equipment
- Laptops
- Phone line security systems
Electrical Characteristics
- Current rating: 3A continuous
- Insulation resistance: 500MΩ min.
- Dielectric withstanding voltage: 1500V min.
- Voltage rating 1000V rms
Mechanical Characteristics
- Mating force: 5N to 20N
- Unmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 120°C
Material:
| Part | Material | Finish |
| Housing | Nylon 46 glass filled | UL94V-0 |
| Shield | Copper Alloy | Nickel Plating |
| Contact | Copper Alloy | Au over nickel |
- Drawings
