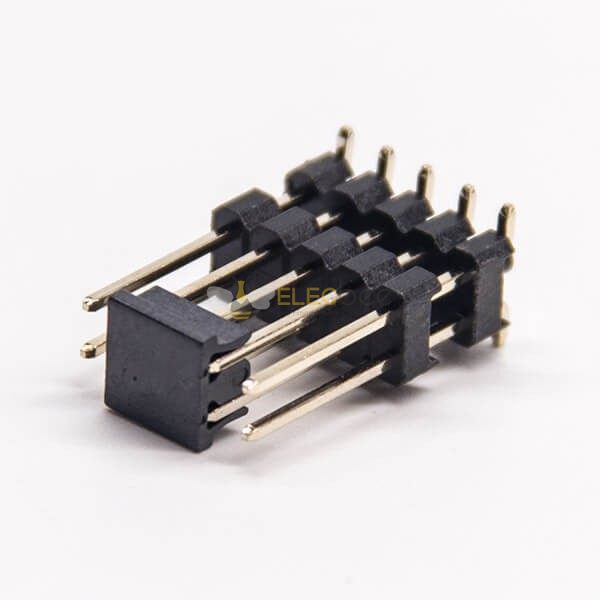

10pcs Double Row Male Pin Header Double Plastic 10 Pin SMT Type 180 Degree PCB Mount Connector
Features:
- Pin Header Connector,Male/Plug,Straight/180°,10Pin,2.54mm,Double Row,Double Plastic,SMT Type,PCB Mount,Solder Type,Gold Plating,Black,Square
- Normally associated with ribbon cable connectors, or worked as recipients for jumpers
- consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Panel Mount
-
Terminal type
Solder Type
-
Installation characteristics
Surface Mount
-
Direction
Straight
-
Number of Positions
10 pin
-
Number of Rows
2
-
Contact Plating
Gold
-
Insulator Colour
black
-
Contact Shape
Circular
-
spacing
2.54mm
- Description
Main Application
- Electronic device
- Home appliances
- Electrical instruments
- Automotive: Car navigation LCD panel and so on.
- Lighting industry
- The above applications are typical but not limited, these products are widely use in many fields
Electrical Characteristics
- Current Rating: 1.5 Amp
- Insulation Resistance: 1000M ohms min
- Contact Resistance: 20M ohms max
- Dielectric Withstanding: AC500V
- Contact Material: Copper Alloy
- Insulator Material: PA6T,UL 94V-0 Black
Mechanical characteristics
- Durability (Gold finish)：300 mating cycles
- Durability (Tin finish)：50 mating cycles
- Insertion force：2N max per contact
- Withdrawal Force：0.3N min per contact
Environmental and Processing
- Operating Temperature: -40°C to +105°C
- LCP Suitable For: IR Reflow, Wave, Manual solder
