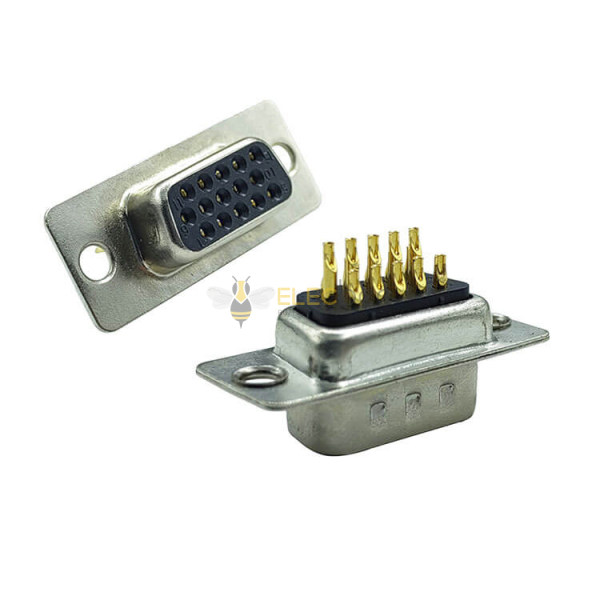

D SUB 15Pin Connector Straight Male Female Solder Type 15pin 3 Rows Bur 10A 20A 30A 40A 10A

D SUB 15Pin Connector Straight Male Female Solder Type 15pin 3 Rows Bur 10A 20A 30A 40A 10A

Name: D SUB 15Pin Connector Straight Male Female Solder Type 15pin 3 Rows Bur 10A 20A 30A 40A
Brand: Elecbee
SKU: EB-607-0144-V-10A
Price: 1.7 USD
Availability: InStock

$1,70

SKU: EB-607-0144-V-10A

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$1.61

10-19 PCS

$1.53

20-99 PCS

$1.36

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Current

- +

Features:

Machined Pin D-sub,15Pin, Straight,Male,Female, Solder Type,3 Rows,Bur, RS232
Precision turned contacts;
D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

D SUB 15Pin Connector Straight Male Female Solder Type 15pin 3 Rows Bur 10A 20A 30A 40A 10A

EB-607-0144-V-10A

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable Type
Terminal type

Plug-in
Installation characteristics

Front Open Screwlock(4-40)
Direction

Straight
Connector Model

Machined D-sub
Number of Positions

15 pin
Conductor Type

machined pin
filter

No
Number of Rows

3
Protect Level

Not Waterproof
Contact Plating

Gold

Description

Applications:

Business equipment
Electronic office systems
Data communications
Technology equipment
Mobile communications
Consumer electronics

Electrical Characteristics

Voltage Rating :300 V AC/rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance：5000MΩ
Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

DF: -67°F (-55°C) to + 257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
