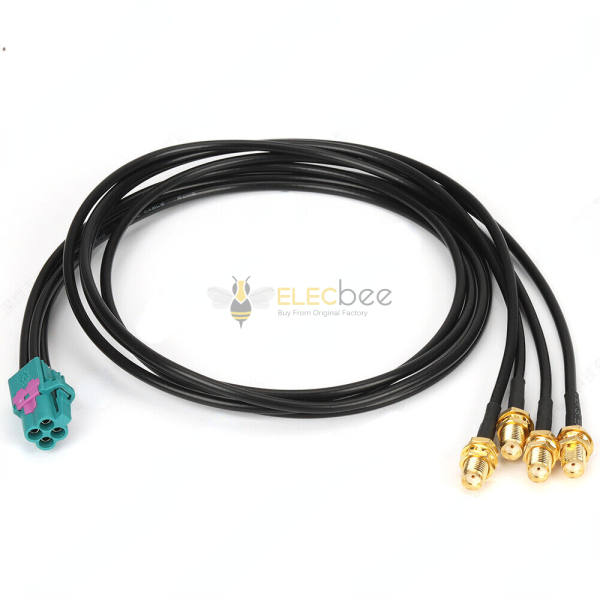

Fakra Cable Assembly Mini Fakra Z Female to SMA Female Mini 4-in-1 Cable Adapter 4 Ports Universal 50CM Rosenberger
- Fakra Cable, Mini Fakra, Z Type, Female, SMA，Female, Four Ports, Straight, Cable
- 14 different mechanical and color codes
- Plastic housing with locking feature and audible clicking noise
- Minimum of 100 mating cycles
- Frequency range of DC - 4 GHz
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Automotive
- Global Positioning Satellite
- Satellite Radio
- Bluetooth
- Remote Vehicle Diagnostics
- Infotainment Systems
- Wireless communication
- Wireless LAN
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Type
Fakra
-
Connector A Gender
Female
-
Connector A Direction
Straight
-
Connector B Type
SMA
-
Connector B Gender
Female
-
Connector B Direction
Straight
-
Cable Type
LVDS
-
Length
0.5m
- Description
- Product applicable standards: IEC60169-1 IEC60169-10
- Product name: FAKRA SMB CONNECTOR
- Interface model FAKRA SMB-C-J1.5
- FAKRA SMB working voltage: 335V
- Working temperature: -40°C～＋85°C
- Working frequency range: DC-4GHz
- Characteristic resistance: 50Ω
Technical Parameters:
Electrical performance:
- VSWR:﹤1.3
- Contact resistance: inner conductor ≤ 6mΩ, outer conductor ≤ 1mΩ
- Insulation resistance: 1000MΩ
- Dielectric withstand voltage: 1000V (according to MIL-PRF-39012 paragraph 3.17)
Mechanical behavior:
- Holding force: >110N
- (Complies with MIL-PRF-39012 paragraph3.5 Axial Force)
- Insertion force: 25N maximum
- (Complies with MIL-PRF-39012 paragraph3.5 Axial Force)
- Pull-out force: 25N max.
- (Complies with MIL-PRF-39012 paragraph3.5 Axial Force)
- Mechanical life: >50 times (frequency 10 times/MIN)
- (according to MIL-PRF-39012 paragraph 3.15) SMB connector mechanical life: >500 times (frequency 12 times/MIN)
Environmental performance
- Temperature resistance: ambient temperature -40°C～105°C
- Salt spray resistance: >48H
- Moisture resistance: up to 95% at relative humidity +40°C
- Mutual matching relationship: can be matched with FAKRA accessories of the same type
- Installation method: After aligning, insert and engage and clamp tightly.
- Storage conditions: Store in warehouses with a temperature of -10～+35°C, relative Humidity: no more than 80%, and no corrosive gases such as acid and alkali in the surrounding air
