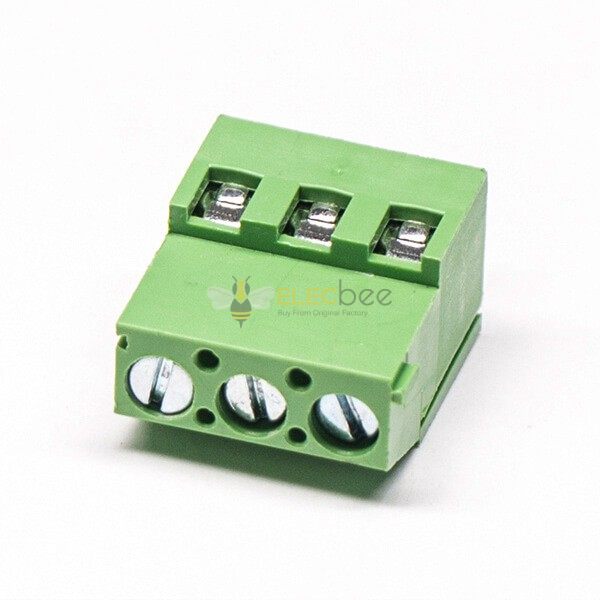

3 pin Screw Terminal Connectors PCB Mount Screw Clamping Straight

3 pin Screw Terminal Connectors PCB Mount Screw Clamping Straight

Name: 3 pin Screw Terminal Connectors PCB Mount Screw Clamping Straight
Brand: Elecbee
SKU: EB-620-1012
Price: 0.49 USD
Availability: InStock

$3.07

SKU: EB-620-1012

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$0.47

10-19 PCS

$0.44

20-99 PCS

$0.39

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Pitch

- +

Product features:

PCB universal,terminal,Green,Straight,3pin,300V,15A,5.00/5.08mm,Through Hole,Screw Clamping
three type to insert lines,design with monolayer,double decks,and three decks
give morechoices for connvenient use.
PCB Mount Universal Screw Terminal Blocks Assortment Kit

Main Application

Computer, telecommunications, network communication
Industrial electronics, transportation, aerospace
Technology equipment and automotive industry

Contact Sales

3 pin Screw Terminal Connectors PCB Mount Screw Clamping Straight

EB-620-1012

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Straight
Number of Positions

3
Insulator Colour

green
Current

15A
Voltage

300V
spacing

5.0mm/5.08mm
Wiring Type

Screw Clamping

Description

Electrical Characteristics

Rated voltage: 300V
Rated current: 10A 15A 20A 30A
Withstanding voltage: AC1250V/1Min
Wire range: 26-18AWG 1.0mm

Mechanical Characteristics

Torque: 0.1Nm(0.89Lb-In.)

Environmental Characteristics

Temperature range:-40°C ~ +105°C

Material

Screw:M2，Steel,Zinc plated
Reed：Brass，Ni plated
Pin header：Brass，Tin plated
Housing: PA66,UL94V-0
