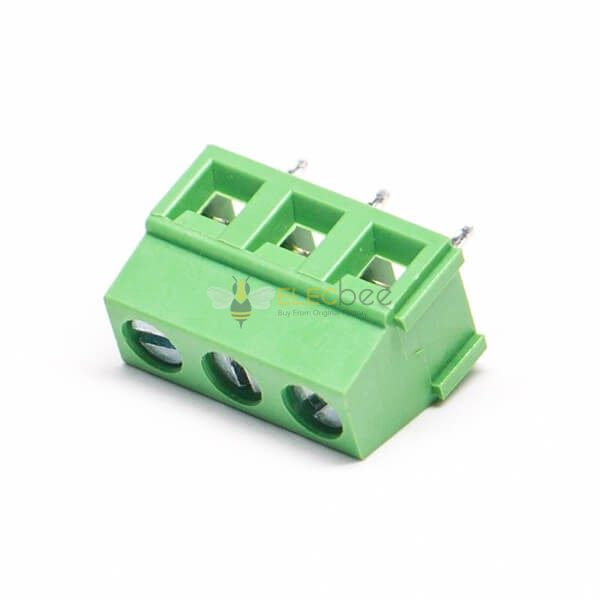

3 pin Screw Terminal Connector Green Vertical Type Through Hole for PCB

3 pin Screw Terminal Connector Green Vertical Type Through Hole for PCB

Name: 3 pin Screw Terminal Connector Green Vertical Type Through Hole for PCB
Brand: Elecbee
SKU: EB-620-1013
Price: 0.39 USD
Availability: InStock

$0.39

SKU: EB-620-1013

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$0.37

10-19 PCS

$0.35

20-99 PCS

$0.31

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Pitch

- +

Product features:

PCB universal terminal,Green,Straight,3pin,300V,10A,Through Hole,Screw Clamping
three type to insert lines,design with monolayer,double decks,and three decks
give morechoices for connvenient use.
PCB Mount Universal Screw Terminal Blocks Assortment Kit

Main Application

Computer, telecommunications, network communication
Industrial electronics, transportation, aerospace
Technology equipment and automotive industry

Contact Sales

3 pin Screw Terminal Connector Green Vertical Type Through Hole for PCB

EB-620-1013

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Straight
Number of Positions

3pin
Insulator Colour

green
Current

10A
Voltage

300V
Wiring Type

Screw Clamping
spacing

3.50mm/3.81mm

Description

Electrical Characteristics

Rated voltage: 300V
Rated current: 10A 15A 20A 30A
Withstanding voltage: AC1250V/1Min
Wire range: 26-18AWG 1.0mm

Mechanical Characteristics

Torque: 0.1Nm(0.89Lb-In.)

Environmental Characteristics

Temperature range:-40°C ~ +105°C

Material

Screw:M2，Steel,Zinc plated
Reed：Brass，Ni plated
Pin header：Brass，Tin plated
Housing: PA66,UL94V-0
