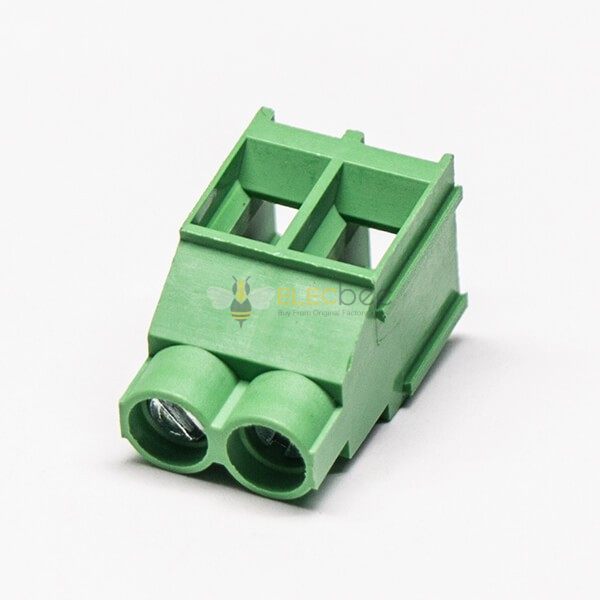

2 pin Screw Terminal Block Connector Vertical Type Green
Product features:
- PCB universal terminal,Green,Straight,2pin,300V,30A,6.35mm.Through Hole,Screw Clamping
- three type to insert lines,design with monolayer,double decks,and three decks
- give morechoices for connvenient use.
- PCB Mount Universal Screw Terminal Blocks Assortment Kit
Main Application
- Computer, telecommunications, network communication
- Industrial electronics, transportation, aerospace
- Technology equipment and automotive industry
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
direction
Straight
-
Number of Positions
2pin
-
Insulator Colour
green
-
Current
30A
-
Voltage
300V
-
Wiring Type
Screw Clamping
-
spacing
6.35mm
- Description
Electrical Characteristics
- Rated voltage: 300V
- Rated current: 10A 15A 20A 30A
- Withstanding voltage: AC1250V/1Min
- Wire range: 26-18AWG 1.0mm
Mechanical Characteristics
- Torque: 0.1Nm(0.89Lb-In.)
Environmental Characteristics
- Temperature range:-40°C ~ +105°C
Material
- Screw:M2，Steel,Zinc plated
- Reed：Brass，Ni plated
- Pin header：Brass，Tin plated
- Housing: PA66,UL94V-0
