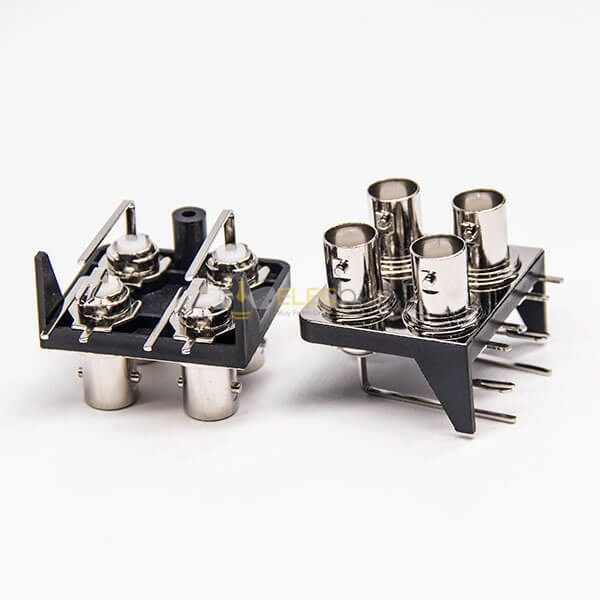

20pcs BNC Connector Socket 2x2 Angled Coaxial PCB Mount
- Pcb Mount, Jack/Female, Angled/90°, Plastic Panel, 2x2;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of BNC Connectors:
Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
- Specification
-
Product Attribute
Attribute Value
Search
-
Material
Zinc Alloy
-
Installation method
PCB Mount
-
Terminal type
Solder Type
-
Installation characteristics
Through Hole
-
Gender
Female
-
Function
Other
-
direction
Right Angle
-
Polarity
Standard
-
Coating
Nickel Plating
-
Impedance
50Ω/75Ω
-
Outer conductor connection
Without
- Description
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~3 GHz
- VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Method 204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Zinc | Nickel (Ni) |
| Center Contact Pin | Brass | Nickel (Ni) |
| Insulator | POM | White |
