RS485 8DI 4AI 4DO Ethernet Remote I/O Module for Industrial Automation Data Collection EB-M150T
- Description
Description

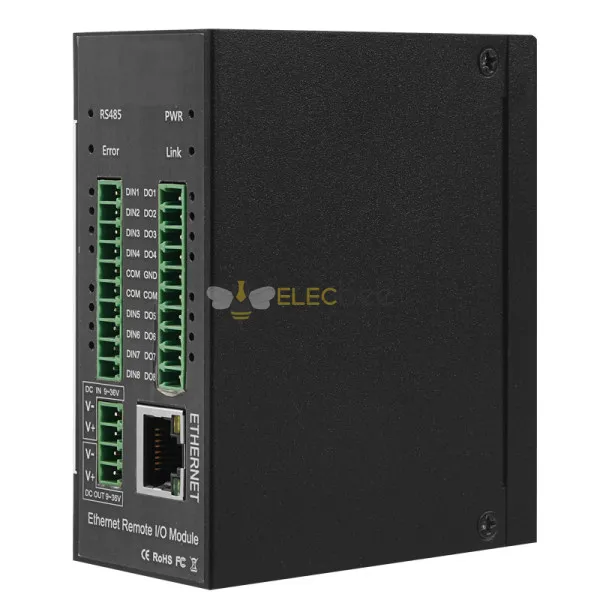

EB-M150T is industrial remote Ethernet IO module that has one Ethernet port, one RS485, 8 DI, 4 DO, 4 AI interface, and it supports high-speed pulse counting and pulse output. It supports MQTT, Modbus TCP and Modbus RTU protocols, and it provides TCP client and TCP server services, supports max. 5 TCP Client connections.
Can be integrated into SCADA, PLC, HMI, and other automation systems, it is widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.
The Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.
Special instructions for ordering:
1) DIN default type: wet contact, optional: dry contact. The input type cannot be changed after manufacturer delivered. The DIN1 default is high-speed count mode; it can be changed to low-speed count mode by open the shell and change the internal jumper. If require dry contact input, please note when ordering, if DIN1 require high-speed pulse count mode then must be wet contact.
2) DO default type is SINK, DO1 supports high-speed pulse output; DO2 can be used to control the direction of the stepper motor. DO default is sink, can control ≤24V DC ≤0.5A relay directly, otherwise must connect external relay.
3) I/O port quantities of each models is referred to the table list only. As MXXT series use same housing, those I/O port hardware terminal blocks on the device which not described in the table is not valid.
