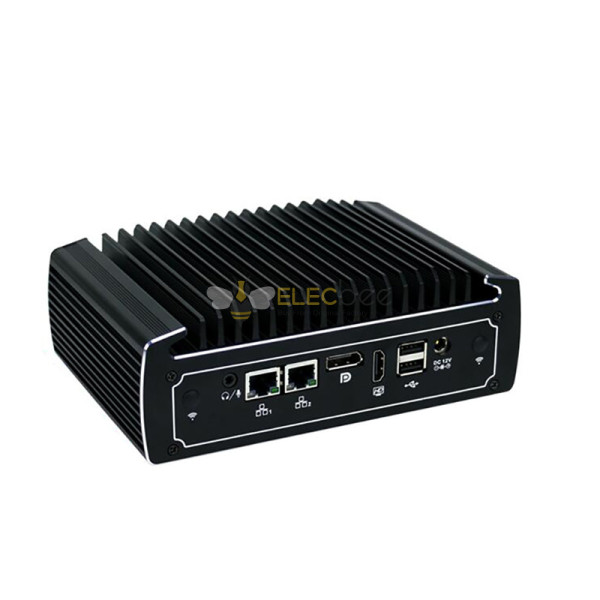

Fanless 10 Core i3/i5 Processor Mini Industrial Personal Computer Control Host Nano Industrial PC
- Description
2. On board 10th generation intelligent Intel ® CoRE ™ I3/i5 processor;
3. Support TPM2.0 security encryption and Windows 11 system;
4. It supports one DDR4 memory slot, up to 32G;
5. Support 1 M 2 2280 slots, 1 2.5 inch hard disk;
6. Support 2 COM ports (2 optional RS232/485 modes);
7. Support DC 12V input;
8. Applicable system: win10/win11/Linux system
| Chassis color: | black (color can be customized) |
| Case material: | high-quality all aluminum alloy, hard anodized surface |
| Processor: | onboard Intel Core i3 10110U (dual core four thread main frequency 2.1G, Remax up to 4.1G） |
| Onboard Intel Core i5 10210U (quad core 8-thread, 1.6G main frequency, 4.2G Remax, 6MB cache) | |
| Memory support: | 1 DDR4 2666/2933 SODIMM memory socket, up to 32 GB |
| BIOS： | AMI EFI BIOS |
| Display chip: | the tenth generation of intelligent Intel ® CoRE ™ Super core video card |
| Display interface: | 1 DP HD display interface, 1 HDMI HD display interface, |
| Front panel I/O port: | 2 COM ports (RS232/485 mode optional), 4 USB3.0, 1 power on button, 1 SIM card holder |
| Rear board I/O port: | 1 DC interface, 2 USB2.0 interfaces, 1 HDMI interface, 1 DP interface, 2 Intel gigabit network interfaces, and 1 2-in-1 audio interface |
| Expansion slot: | support one M.2 2280 M-Key slot (support SATA protocol and NVME protocol),Support 1 MINI PCIE slot (one of WIFI/3G/4G), front SIM card holder |
| Network interface: | 2 Intel i211-AT 10/100/1000M Ethernet |
| Storage interface: | support 1 M.2 2280 slot, 1 2.5 inch hard disk, support RAID 0/1 |
| Input voltage: | support DC 12V input |
| Other functions: | power on, timed power on, network wake-up, PXE startup, watchdog (level 0~255), TPM2.0 security encryption |
| Operating temperature: | 0 ℃～+40 ℃ (commercial HDD), - 20 ℃～+50 ℃ (industrial SSD), surface air flow |
| Operating humidity: | 5%~95% non condensing |
| Safety certification: | CE, CCC, FCC Class A, ROHS |
| Product size: | 186 * 126.5 * 66 mm |
| Operating weight: | 1.3 kg |
| Application fields: | business office, high-definition video broadcasting, electronic education, industrial automation, etc. |
Feature
Applications
