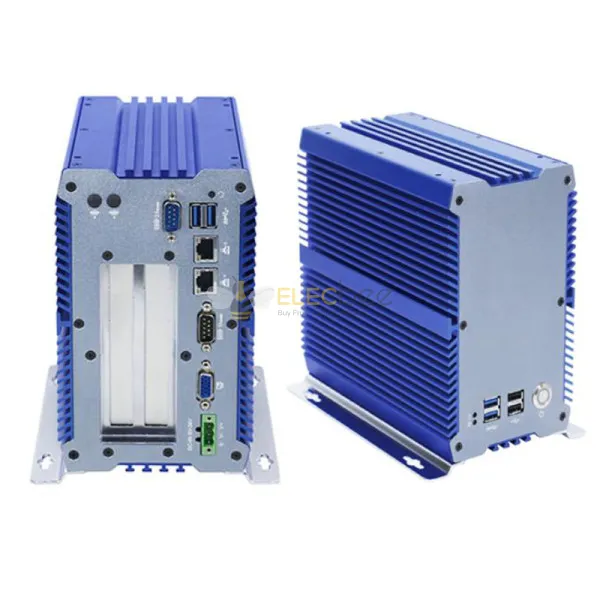

Fanless Mini Desktop Industrial Computer Rail with GPIO Fanless TPM RS232/RS485 Serial Port Control IPC
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Description
Support DDR4 1866/2133 16G memory;
Supports 1 MSATA slot, 1 2.5-inch hard drive bay;
Support WIFI/3G/4G module (choose one out of three);
Support 6 COM ports (2 optional RS232/422/485 mode)
Support DC 9~36V wide voltage input, support reverse polarity protection; .
Chassis color: blue + gray (color can be customized freely)
Chassis material: high-quality all-aluminum alloy, hard anodized surface
Processor: Onboard Intel Celeron 3865U (dual-core, dual-thread, 2MB L3 cache, clocked at 1.8 GHz),
Onboard Intel Core i5 7200U (dual core, four threads, 3MB L3 cache, main frequency 2.5GHz, turbo frequency up to 3.1GHz),
Onboard Intel Core i7 7500U (dual core, four threads, 4MB L3 cache, main frequency 2.7GHz, turbo frequency up to 3.5GHz),
Memory: Supports 1 DDR4 1866/2133 SODIMM memory slot, up to 16GB
BIOS: AMI EFI BIOS
Display chip: Integrated Intel HD Graphics 610/620 core graphics card
Display interface: 1 VGA interface, 1 HDMI built-in pin (support synchronous asynchronous dual display)
Front panel I/O ports: 2 USB3.0, 2 USB2.0, 2 indicator lights, 1 power switch
Rear panel I/O ports: 2 USB3.0, 2 Intel Gigabit Ethernet ports, 1 VGA port, 1 3P power supply Phoenix terminal, 1 clear COMS button, standard 4 COM ports (optional 6 COM port, COM1, 2 optional RS232/422/485 mode),
Expansion interface: support 1 MINI PCIE slot (optional WIFI/3G/4G), with SIM card holder,
Support 1 MINI PCIE slot (support MSATA),
Optional interface (standard shipment does not include this interface): GPIO interface, audio interface, HDMI interface, 2 COM ports,
Expansion slot (choose one of three): 1 PCIE X4 slot + 1 PCI slot (32bit), built-in 1 USB2.0 interface,
2 PCI slots (32bit), built-in 1 USB2.0 interface,
1 PCIE X4 slot + 1 PCIE X1 slot, built-in 1 USB2.0 interface,
Network Interface: 2 Intel i211-AT 10/100/1000M Ethernet,
Storage interface: support 1 MSATA slot, onboard 1 2.5-inch hard disk,
Input voltage: DC 9~36V wide voltage input, support reverse polarity protection,
Other functions: Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0-255),
Operating temperature: 0°C to +50°C (commercial HDD), -20°C to +60°C (industrial SSD), surface air flow,
Working humidity: 5% ~ 95% non-condensing state,
Safety certification: CE, CCC, FCC Class A, ROHS,
Product size: 215 * 185 * 115 mm [without wall mount],
Overall weight: 3.6 kg [without wall mount],
Application areas: industrial automation, medical, logistics and transportation, warehousing, machine vision and other fields.
