- Description
Support DDR4 1866/2133 16G memory;
Support 32-channel optocoupler isolation GPIO signal, support 9~36V wide voltage;
Support 5 network ports (support 4 802.3af standard POE network ports)
Support DC 9~36V wide voltage input
High-performance Skylake-U CPU platform, supports 3855U/I3/I5/I7 processors. 5-way Intel Gigabit network, 4 of which support POE Power over Ethernet. 32-bit digital GPIO interface, with photoelectric isolation protection, provides routines. 2 serial ports can support RS485. Support 9~36V DC wide voltage DC power supply. It can be used in industrial production machine vision applications such as circuit board visual inspection, product surface inspection, solder joint quality inspection, high-speed barcode scanning, and parts assembly process inspection.
The product adopts all-aluminum alloy fanless and fully enclosed structure, and adopts industrial solid-state hard disk, which is more suitable for industrial environments such as wide temperature, dust, and static electricity. It is durable and can run stably for a long time.
Product Specifications:
Chassis color: black (color can be customized freely)
Chassis material: high-quality all-aluminum alloy, hard anodized surface
Processor: Onboard Intel Celeron 3855U (dual-core, dual-thread, clocked at 1.6 GHz)
Onboard Intel Core i3 6100U (dual core, four threads, clocked at 2.3 GHz)
Onboard Intel Core i5 6200U (dual core, four threads, main frequency 2.3GHz, turbo frequency up to 2.8GHz)
Onboard Intel Core i7 6500U (dual core, four threads, main frequency 2.5GHz, turbo frequency up to 3.1GHz)
CPU Architecture: Skylake-U
Memory: Supports 1 DDR4 1866/2133 SODIMM memory slot, up to 16GB
BIOS: AMI EFI BIOS
Display chip: integrated Intel HD Graphics 510/520 core graphics card
Display interface: 1 VGA display interface, 1 HDMI high-definition display interface
Front panel I/O ports: 2 COM ports, 1 power switch

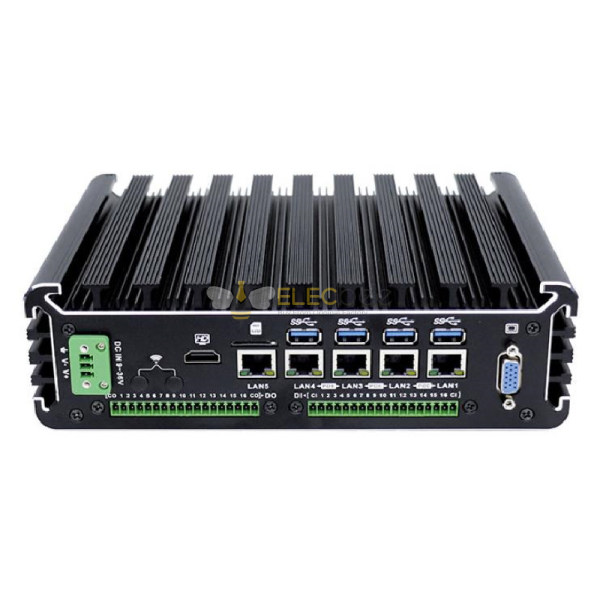

Rear panel I/O ports: 4 USB3.0 ports, 1 VGA port, 1 HDMI port, 1 2 PIN power supply Phoenix terminal, 5 Intel Gigabit Ethernet ports,
Two 18 PIN Phoenix terminals, GPIO interface (with optocoupler isolation, support 9 ~ 36V wide voltage)
Expansion interface: support 1 MINI PCIE slot (optional WIFI/3G/4G), with SIM card holder support 1 MINI PCIE slot (support MSATA)
Network interface: 5 Intel i211-AT Gigabit Ethernet interfaces (support 4-way 802.3af standard POE network ports)
Storage interface: 1 MSATA slot, 1 2.5-inch hard drive bay
Input voltage: support DC 9~36V wide voltage input Other functions Power-on, timed power-on, LAN wake-up, PXE start, watchdog (0~255 levels)
Operating temperature: 0°C to +50°C (commercial HDD), -20°C to +60°C (industrial SSD), surface air flow
Working humidity: 5% ~ 95% non-condensing state
Safety certification: CE, CCC, FCC Class A, ROHS
Product size: 230 * 166 * 68 mm [without wall mount]
Weight of the whole machine: 2.3 kg [without wall mount]
Application areas: industrial automation, machine vision, transportation industry, power monitoring and other fields.
