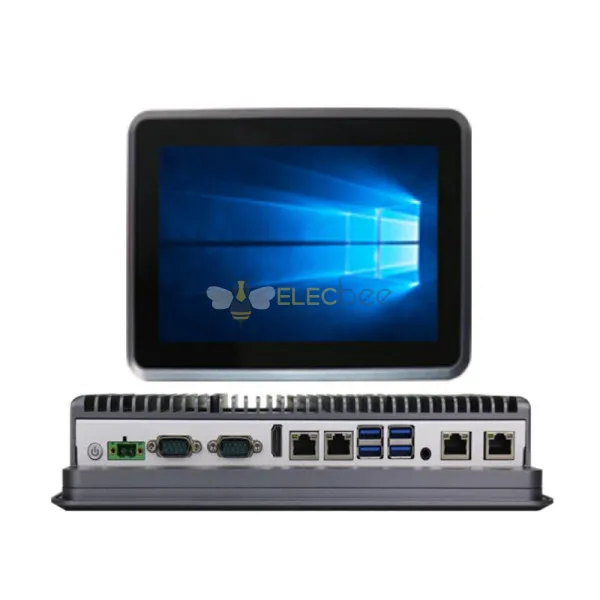

10 inch Industrial Touch All-in-one Computer Application for Industrial Automation, Medical, Logistics, Transportation, Warehousing, Machine Vision
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Description
On board Intel whiskey Lake U series processing;
Support 9-36v wide voltage input and tpm2.0 security encryption;
Supports 2 RS232 / 422 / 485 serial ports, and 6 serial ports are optional;
Supports 2 Intel network ports, and 4 network ports are optional;
Full plane front panel, IP65 protection;
Chassis color: black (color can be customized freely)
Chassis material: aluminum alloy chassis
processor:
Onboard Intel Celeron4205U (dual-core, dual-thread, clocked at 1.8Ghz, 2B cache)
Onboard Ii5-8265U (four cores and eight threads, main frequency 1.6Ghz, turbo frequency 3.9hz, 6MB cache);
Onboard Ihci7-8565U (four cores and eight threads, main frequency 1.8Ghz, turbo frequency 4.6Ghz, 8MB cache);
Memory support: 1 DDR4213/2400s ODMM
Memory Slots: Up to 32GB
BIOS: AMI EFI BIOS
Graphics chip: Integrated Intel UHD Graphics core graphics card
Display connection: 1 HDMI, 1 LWDS interface (support synchronous/asynchronous dual display)
Storage space: Onboard 1 M.22280 slot (SATA protocol), 1 2.5-inch hard drive, support RAID0/1
Expansion slot: support 1 Mini pcil slot (optional support for WiFI/Bluetooth/3G/4G, with SIM card holder) 1 HDMI interface, 2 serial ports (COM1, 2 optional RS232/422/485, optional 6 serial ports), 1 switch button, I0 port 1 2Pin power supply Phoenix terminal, 1 audio combo-, 4 USB3.0, 2 Intel Gigabit Ethernet ports (optional 4) Other functions TPM0 security encryption , Power on, timed boot, LAN wake-up, PXE boot, watchdog (level 0~255)
Expandable function (standard shipment does not have this interface): GP10 (8 in 8 out), 2 Ethernet ports, 4 serial ports, 2 UsB2.0
LCD screen parameters Screen size: 10.1 inch TFT-LCD;
Screen brightness: 350cd/m;
Viewing angle: full viewing angle Screen ratio: 16:9;
Resolution: 1280*800;
Touch screen parameters: industrial grade multi-point capacitive touch screen, touch life can reach more than 50 million times; 2 8Ω2W speakers
Input voltage: DC9~36V wide voltage input, support reverse polarity protection
Operating temperature: 0°C~+50°C (Machine hard drive), -20°C~+60°C (SSD), surface air flow
Working humidity: 5%~95%
Product size in non-condensed state: 271.5*190*53mm
Embedded installation size: 262*180mm
Overall weight: 2.0kg
Application areas: industrial automation, medical, logistics and transportation, warehousing, machine vision and other fields
