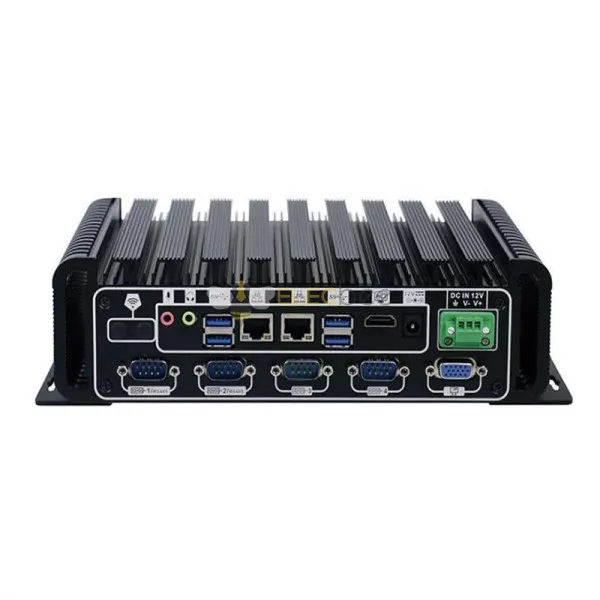

EB-M0701003 Embedded Computer I5/I7 6200U Silent Rapid Heat Dissipation Multi Serial Port RS485 Vision Camera Industrial Controler with WIFI,Plus 3PIN
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Description
Chassis material: high quality all aluminum alloy
Basic standard:On board Intel Core I3 6100U (dual core four thread, main frequency 2.3G, power consumption 15W)
And Processor onboard Intel Core can Up to I5/I7 6200U (dual core four thread, main frequency 2.3G, maximum capacity frequency 2.8G, power consumption 15W)
CPU architecture skylake
Memory supports 1 DOR42133
Memory slot, up to 16gbspi AMI EFI BIOS
Display chip integrated with Intel HD graphics520 core graphics card
Display interface 1 VGA, 1 HDMI (supporting synchronous and asynchronous dual screen display) front panel I / 0 port 4 USB2.0, 2 COM ports, 1 power switch rear panel I / 0 port 4 USB3.0, 4 COM ports, 2 gigabit network ports, 1 VGA interface, 1 HDMI interface 1 DC and 3PIN Fenghuang terminal power input interface supports 1 Mini PCIe channel (optional WiFi / 3G / 4G), with SIM card holder expansion interface optional GPIO interface (this interface is not included in the standard shipment) 2 Intel I211-AT10 / 100 / 1000M network cards
Ethernet storage space 1 SATA3.0 interface, 1 * vsata interface
Power supply: DC 12V
Working temperature: - 10 ℃ ~ + 50 ℃
Working humidity: 0% ~ 95% (non condensing state)
Product size: 264 * 166 * 70.5mm
Overall weight: 3.0kg
