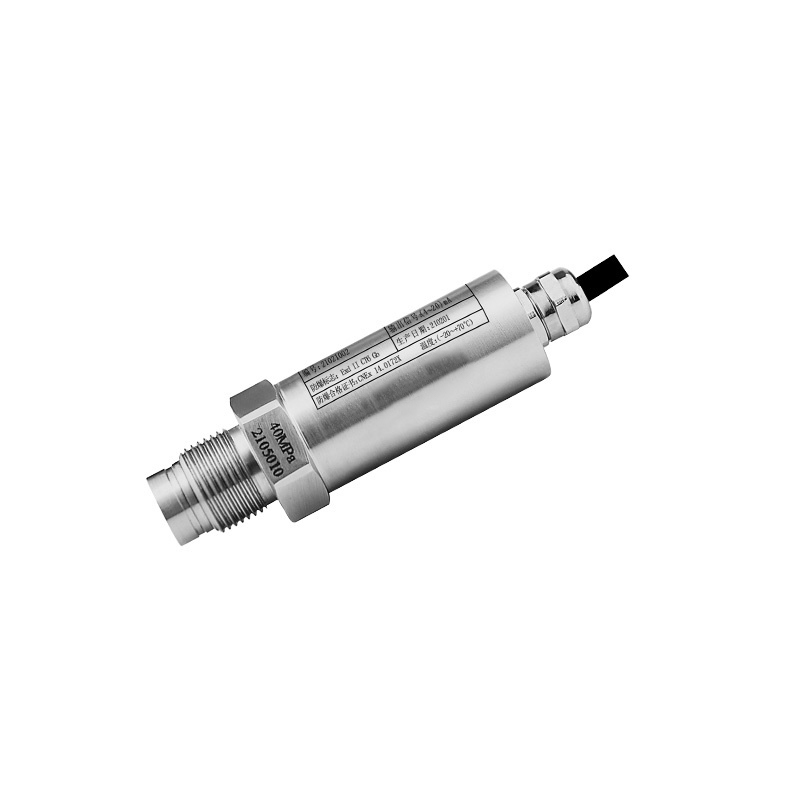

Flat Film Pressure Transmitter, Flushing Diaphragm Pressure Transmitter Specially Designed for Measuring Pressure of Viscous Medium
- Description
Flush diaphragm pressure transmitters are specially designed for pressure measurement of viscous media (mud, coal slurry, paint, crude oil, glue, etc.). This product externalizes the specially treated sensor components to form a structure without pressure holes and cavities, which can prevent viscous media from clogging the pressure holes and cavities. reliability and ease of installation. The pressure connection interface can be customized according to customer requirements. Convenient for Installation in Various Working Conditions Anti-Vibration, Anti-Impact, Anti RFI, Anti-Lightning Strike.
Product Applications
1. Chemical, Coating
2. Petroleum, Environment Protection
3. Sealed Hydraulic System
4. Construction, Cement
5. Mud, Coal Slurry, Crude Oil and Other Viscous Media
Specification
| Measuring Medium | Liquids, Gases, or Vapors Compatible with 316 or 304 Stainless Steel |
| Pressure Ranges | Gauge 0～0.01 through 0～60MPa, Absolute 0～0.1 through 0～60MPa,Vacuum 0～-0.1MPa |
| Proof Pressure | 2X Full Scale |
| Output | 4～20mADC(2-Wires) 0～10VDC, 0～5VDC, 1～5VDC(3-Wires) |
| Excitation | 9～36VDC(2-Wires), 24±5VDC(3-Wires) |
| Medium Temp Range | -30～+85℃, -30～+150℃(Heat Sink) |
| Operating Temp Range | -20～+85℃ |
| Storage Temp Range | -40～+90℃ |
| Relative Humidity | ≤95％(40℃) |
| Warm-up | ≤5mS to 90％FS |
| Static Accuracy | 0.5% FS, 0.25% FS, 0.1%FS(Combined Effects of Non-Linearity, Hysteresis & Repeatability) |
| Temperature Drift | ≤±0.05％FS／℃(Combined Effects of Zero & FS with Temp Range -20～85℃) |
| Compensated Temp Range | 0～70℃ |
| Long-Term Stability | Typical ±0.1％FS per year, Maximum ±0.2％FS per year |
| Medium Contact Material | 316L or 304 Stainless Steel |
| Sheathing Material | 316L or 304 Stainless Steel, Aluminum Alloy Spray Paint(Industrial Transmitter) |
| Mounting Method | Screw Mounting |
| Pressure Port | M20×1.5, M12×1, G1／4, G1／2 External Screw |
| Electrical Connector | Four-Core Shielded Cable, Aviation Connector, Hessman Connector, etc |
