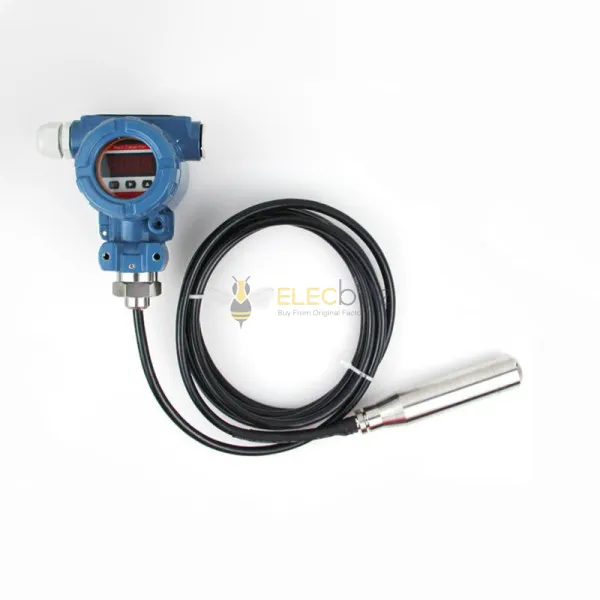

Hydrostatic probe liquid level sensor, Water Level Digital Display Level Gauge, Submersible transmitter
- Description
Product Applications
2. Pump, Compressor
3. Chemical Machinery
4. Electric Power and Environmental Protection
5. Natural Gas Filling
6. Industrial Process Detection and Control
7. Pipe Network and Storage Tank Control System
8. Pressure Measurement for Hydrogen Storage and Transportation
9. Smart City Sewage Treatment System
10. Pipeline system monitoring
| Trade name: | input liquid level transmitter |
| Range selection: | 0-1M-100M |
| Accuracy class: | 0.25%, 0.5% |
| Sealing material: | nitrile rubber, fluorine rubber |
| Sensor diaphragm: | stainless steel 316L |
| Operating temperature: | - 40 ℃ - 80 ℃ |
| Output signal: | 4-20MA (RS485, HART optional) |
| Protection grade: | IP67 |
The immersion hydrostatic level transmitter is used to measure the liquid level applications. It is based on the measured hydrostatic proportionalto the height of the liquid with the principle,
using ceramic piezoresistive effect sensing elementand temperature compensation and linearitycorrection, then covert the hydrostatic pressure to an electrical signal output of 4-20mA DC .
The sensor part can drop into the liquid and the transmitter can be fixed by flange mounted or Bracket, easily to installand use.
Stability &high precision：
1. Directly drop into the measured medium, very easy to install and use;
2. Solid-state structure, no moving parts, high reliability , long life from the water, the viscosity of the oil to a paste can be
highly accuratemeasurements, not measured media bubble, deposition, electrical characteristics;
3. Wide range of temperature compensation;
4. Standard 4-20mA DC output for RTU, PLC and acquisition equipments;
5. Wide range for measurements from 0.3~100m.
6.With power reverse polarity protection and overload current limit protection .
Feature
Applications
