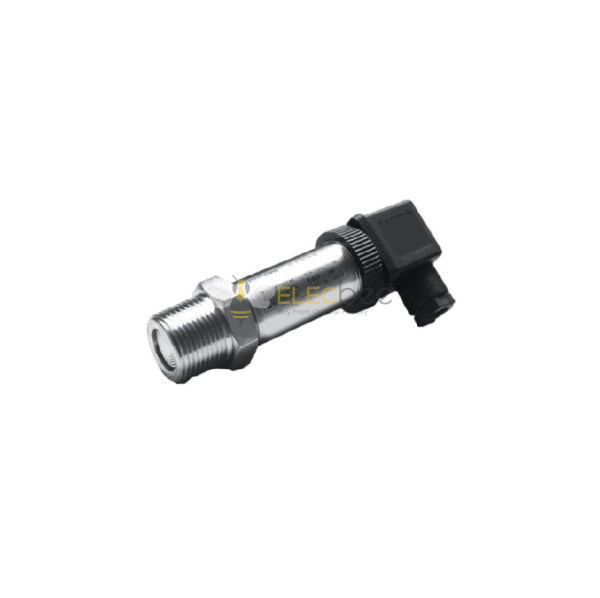

DIN Flat Film Pressure Transmitter Industrial
- Description
Product Applications
1. Air Compressor, hydraulic pressure, Pneumatic
2. Liquid Level Measurement and Control System
3. Electric Power and Environmental Protection
4. Petroleum and Chemical Industrial
5. Pipe Network and Storage Tank Control System
6. Water Supply System
7. Water-Cooling System
8. Industrial Process Detection and Control
9. Laboratory Pressure Calibrator
Specification
| Measuring Medium | Liquids, Gases, or Vapors Compatible with 316 or 304 Stainless Steel |
| Pressure Ranges | Gauge 0～0.01 through 0～60MPa, Absolute 0～0.1 through 0～60MPa,Vacuum 0～-0.1MPa |
| Proof Pressure | 2X Full Scale |
| Output | 4～20mADC(2-Wires) 0～10VDC, 0～5VDC, 1～5VDC(3-Wires) |
| Excitation | 9～36VDC(2-Wires), 24±5VDC(3-Wires) |
| Medium Temp Range | -30～+85℃, -30～+150℃(Heat Sink) |
| Operating Temp Range | -20～+85℃ |
| Storage Temp Range | -40～+90℃ |
| Relative Humidity | ≤95％(40℃) |
| Warm-up | ≤5mS to 90％FS |
| Static Accuracy | 0.5% FS, 0.25% FS, 0.1%FS(Combined Effects of Non-Linearity, Hysteresis & Repeatability) |
| Temperature Drift | ≤±0.05％FS／℃(Combined Effects of Zero & FS with Temp Range -20～85℃) |
| Compensated Temp Range | 0～70℃ |
| Long-Term Stability | Typical ±0.1％FS per year, Maximum ±0.2％FS per year |
| Medium Contact Material | 316L or 304 Stainless Steel |
| Sheathing Material | 316L or 304 Stainless Steel, Aluminum Alloy Spray Paint(Industrial Transmitter) |
| Mounting Method | Screw Mounting |
| Pressure Port | M20×1.5, M12×1, G1／4, G1／2 External Screw |
| Electrical Connector | Four-Core Shielded Cable, Aviation Connector, Hessman Connector, etc |
Feature
Applications
