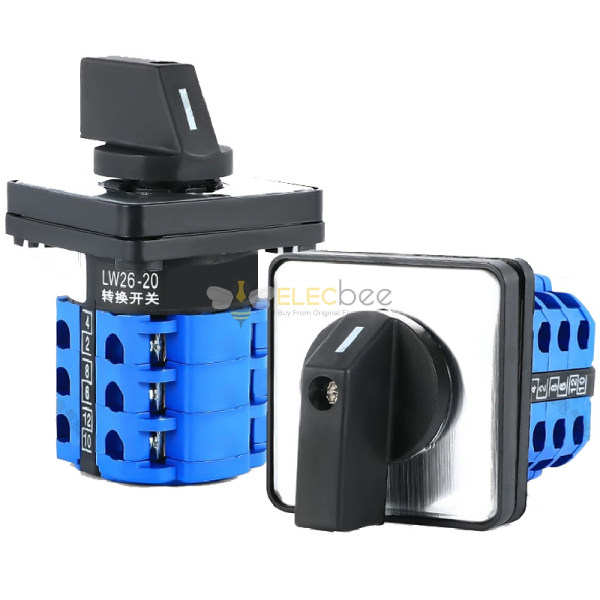

Rotary Switches Industrial Mechanical Equipment Medical Equipment Lathe Switches Forward Reverse Manual Automatic Adjustment Switches 20A 25A 32A 63A
- Description
| Model | Panel | Overall dimensions（mm) | Mounting Dimensions（mm） | |||||||
| A | B | C | L | E | F | D1 | D2 | |||
| EB-LW26-10 | M0 | 30 | 30 | 30.5 | 15.5+8n | 20 | Φ8 | Φ3.2 | ||
| EB-LW26-20 | M1 | 48 | 48 | 43 | 22+9.6n | 36 | 36 | Φ8.5 | Φ4.5 | |
| EB-LW26-20 | M2 | 64 | 64 | 43 | 25+9.6n | 48 | 48 | Φ10 | Φ4.5 | |
| EB-LW26-25 | M1 | 48 | 48 | 45.2 | 23+12.8n | 36 | 36 | Φ8.5 | Φ4.5 | |
| EB-LW26-25 | M2 | 64 | 64 | 45.2 | 26.5+12.8n | 48 | 48 | Φ10 | Φ4.5 | |
| EB-LW26-32 | M2 | 64 | 64 | 58 | 29.2+12.8n | 48 | 48 | Φ10 | Φ4.5 | |
| EB-LW26-32 | M3 | 88 | 88 | 58 | 29.2+12.8n | 68 | 68 | Φ13 | Φ6 | |
| EB-LW26-63 | M2 | 64 | 64 | 66 | 29.2+21.5n | 48 | 48 | Φ10 | Φ4.5 | |
| EB-LW26-63 | M3 | 88 | 88 | 66 | 29.2+21.5n | 68 | 68 | Φ13 | Φ6 | |
| EB-LW26-125 | M3 | 88 | 88 | 84 | 35+26.5n | 68 | 68 | Φ13 | Φ6 | |
| EB-LW26-160 | M3 | 88 | 88 | 88 | 35+32.5n | 68 | 68 | Φ13 | Φ6 | |
| EB-LW26-250 | M3 | 88 | 88 | 108 | 35.5+36n | 68 | 68 | Φ13 | Φ6 | |
| EB-LW26-315 | M4 | 130 | 130 | 126 | 39.5+38.5n | 104 | 104 | Φ16 | Φ7 | |
Panel default use M2, if you have other needs, please contact customer service when ordering!Panel default use M2, if you have other needs, please contact customer service when ordering!
