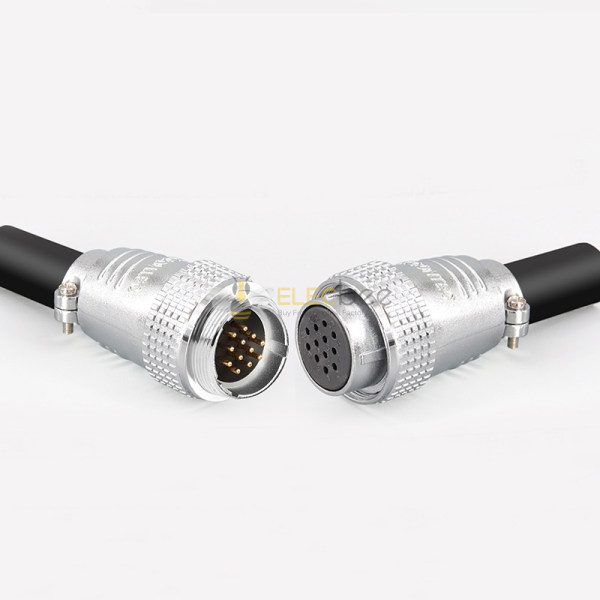

Elecbee 12 Pin Plug Male and Female Docking Cable Connector TP28 Straight Cable Plug

SKU: EB-035-0101-H
Favorites
Key Features

Features:

  • TP28 series aviation connector, Straight, Solder Cup, 12 Pin, Male and Female, Docking Cable Connector
  • Termination Type: Solder Type
  • Shell Material: Zinc Alloy (Chromeplate)
  • Contact Material: Copper Gold Plating
  • Coupling: Threaded Connection
  • Temperature Range: -20 ℃ ~ +85 ℃
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
12 Pin
Operating Temperature
-20℃~+85℃
Rated Current
10A
Rated Voltage
150VAC
Connector Series
TP28
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated, Silver Plated
Insulating Materials
PA66
Cable Diameter
12mm~17.8mm
Shell Size
28
Insulation Color
Black
Description

Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
a****s
Perfect for my robotics project. The gold-plated copper contacts ensure solid connectivity, and the threaded coupling keeps the connection secure even under vibration.
P****h
Good quality zinc alloy housing feels durable. Soldering the 12 pins took time but the solder cups made it smooth. Fits exactly as described.
P****n
Used in a marine setup—so far no corrosion issues. The chrome-plated shell resists moisture well, and docking alignment is precise every time.
N****t
Works fine, but wish pre-tinned wires were included. Soldering directly was a bit fiddly. Solid connector though, good for industrial use.
B****y
Exactly what I needed for connecting two control boxes. The male-to-female docking cable design makes modular setups effortless.
