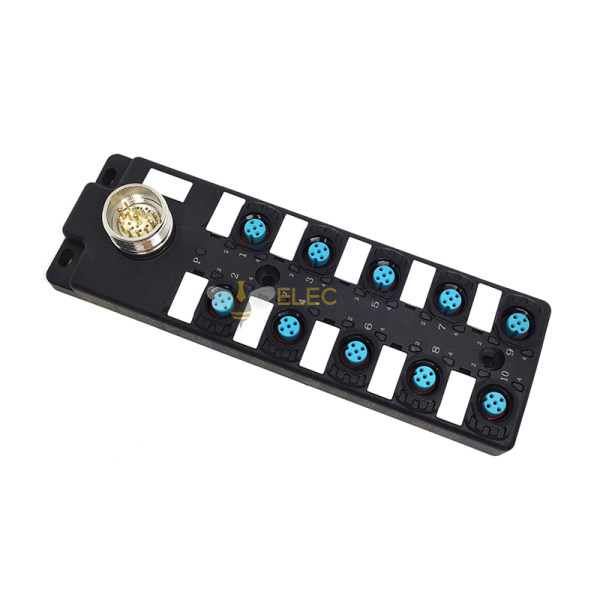

M12 Splitter 10 Port Single Channel NPNLED Indication M23 Prefabricated Interface
Product Features：
- M12,Female needle,4,Direct type,plug,M23,male pin,16,Direct type,plug,black,10 port,single channel,NPN,Standard body,Polybutylene terephthalate (PBT),PC,Gold,IP67,1A,10-30V,-40°C ~ + 184°C,Signal transmission,Military/Aerospace
- Plastic housing, split design, two common types, NPN, PNP, LEDs for easy IO status confirmation；
- Simple wiring operation, shorter wiring project time, effective avoidance of wiring errors, short maintenance time, reduce wiring costs, space saving, simplify design；
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Interface 1 shell size
M12
-
Interface 1 contact type
Female needle
-
Total number of pins in interface 1
4
-
Interface 1 direction
Direct type
-
Interface 1 type
plug
-
Interface 2 shell size
M23
-
Interface 2 Contact Type
male pin
-
Total number of pins in interface 2
16
-
Interface 2 directions
Direct type
-
Interface 2 type
plug
-
colour
black
-
Port number
10 port
-
aisle
single channel
-
Polarity
NPN
-
Housing type
Standard body
-
Shell Material
Polybutylene terephthalate (PBT)
-
Contact Material
PC
-
Contact Plating
Gold
-
IP level
IP67
-
Rated current
1A
-
Rated Voltage
10-30V
-
working temperature
-40°C ~ + 184°C
-
Application scope
Signal transmission
-
application area
Military/Aerospace
- Description
The products have been widely used in engineering machinery, automobile parts production line, electrical system, instrumentation, minerals, oil and gas drilling anti-corrosion engineering wind energy and solar energy, water supply engineering, power station substation, subway and airport, automation equipment, automation system engineering, and many other fields.
Product material and mechanical properties
| Voltage | 24V DC/AC |
| Voltage of Working | 10…30V DC |
| Rated current | 2A |
| Total Current | 6A |
| Rated temperature | -25...+80℃ |
| O-ring | NBR |
| Protection degree | IP67 |
