Description:
EXP GDC is the laptop external graphics adapter equipment; it can help you to use the external independent high-performance graphics, can be used to access any of the PCI-E interface equipment, used to enhance the performance of the laptop, so that you can play those huge games requesting high-performance graphics.
Specifications:
Support Interface: PCI-E X16
Input Interface: Mini PCI-E/NGFF M.2 A Key/Expresscard
Extand Support: PCI-E X16 DMI 5 GT/s
Power: Max. 220W(8Pin interface)/Max. 150W(DC interface)
USB: 1.0/1.1/2.0
Compatible system: Windows XP/7/10,Linux
Features:

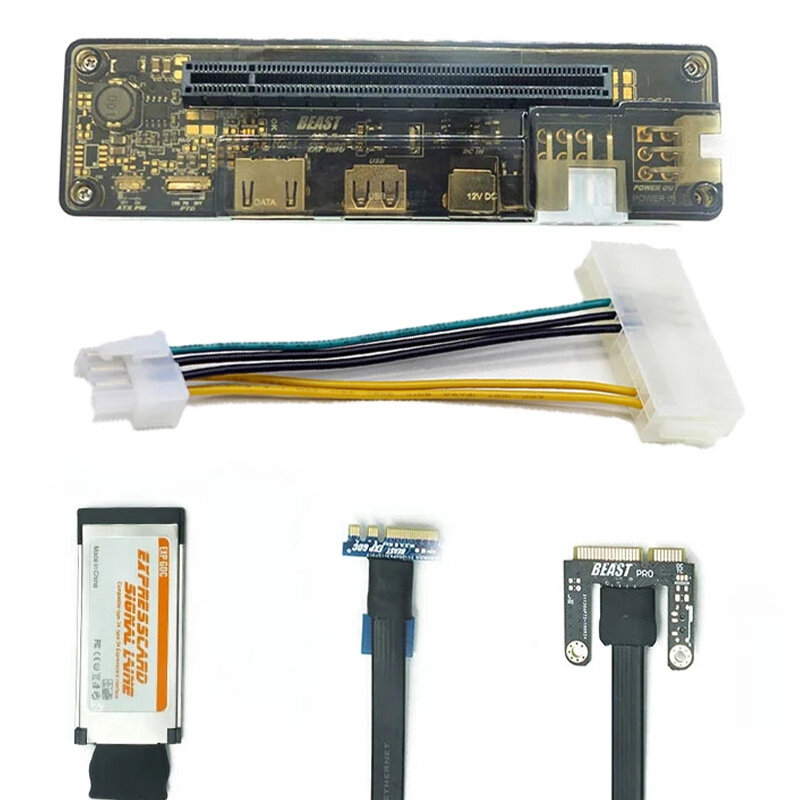

1. EXP GDC Laptop external independent video card dock w/ expresscard data line and 6 Pin/8 Pin power supply cable.
2. Dual TD compatible switch (resolution of hardware conflict).
3. High quality imported electronic component, multistage anti interference and Isolation protection circuit.
4. Multi power automatic switching (support for soft start).
5. Enhanced MINI PCI-E data line with 26pin interface, supports 54 type and 34 type expresscard interface.
6. With 6pin interface for connecting video card power supply; 8pin interface for connecting EXP GDC power supply.
7. Use for engineering measurement, data collection, server debugging, GPU computing and other industrial applications, of course, still be used to access most of the graphics card to play the game.
Note:
EXP GDC is a NOTEBOOK external graphics adapter equipment, do not include graphics card.
If you use your notebook display, please make sure it comes with Intel (R) HD graphics and connected above GTS450 as NVIDIA graphics. Otherwise you need external monitor.
Package Include:
1x Video Card Dock
2x Cables
This products doesn't support these laptop model , please don't make the order if you use these laptop:
Asus (N55SF, N75 ACPI, ASUS A53XI24 1SV-SL, K43SD, A73S, K53SD, X8dij, A43s, n55sl, k45dr)
Lenovo E530, L430, E43, U410, E49, K49, G50-75M(New Add)
HP H533OM, 6910, 5310M
Hasee ui45, EVI4
Haier T68
Acer4739z, AcerE1-451G
Samsung450
Support list :
For Lenovo W530/T520/W520/X220/X220/TZ570/T420/Y460/Y560/T410/E420/X201/X201s Edge/ /T410s/T400/T510/X201T/X200/W500/T61p/X61/T61/T60/T520/T420S//y470/T420I/Y480/G480/k580s/E520/Y580/G500/E46A/Y530/G510/Y400/G500/V460/Y560P/y480n/y480/E420/K29/B470/Z470/L421/SL410K/E420S/G470/G450/z465/Y500/V370/G430/Z370/Y485/Y410P/v1000/s410p/y471a/s230u/V570/e420s/Z500/V470/Y40 70/G710 AT-ISE/y430p/S400/SR1000/B5400/405S/A8/Y50/Z501/Z480/Z580/U310/K46A/z380
For Dell
E6520Vostro/3450/XPS15/L502Studio/1557/E6220/M4500/E6420/E4300Studio/1557XPS 1645E4310M4600Insp.1545XPS/1340E4300 XPS 1640 E6500Insp 1420XPS 1340Vostro 1500 1440Vostro v130XPS M1530D830M1330Studio 1555Insp 1520Vostro 1310E15051545E6520E6520E 6220E 5410E 4310E 641014RM12104600MD630E64206320N4120N50103421N3010772014R4728152014rd658N411014RD658inspiron15-3521e632074205537xps164515r7520767015R 4526 5547 773014R 5420M6600752055374050vostro3300n3420L702X3542155815 75484z-5423 E6230
For Sony
Z21VPC-Z11, VPC-Z13, VPC-Z12, VGN-FW45Z46GD, VGN-NS110eEA27ECVPCCA36ECEA47ECCB36ECNw35eEA200CS138Vgn-nw71fbSVT11138CCS, vpcs128ec, FW17Z45vpcea25fgvpcea18ec, VPCEB26FXVPCZ138GGsve14a28ccsPcg-71212tSVE 141
For HP
4530s/2560P/8460P/4330s/2540P/8440P/DV4-2000/2530P/2740P/6930P/6930P/2730P/HDX9000/ Pavilion DV4/DV9690en/CQ60/DV7126/7CLHDX16HDX18TTX22510PDV7-3020EDDV2000dv2416US6910PNC640021334530sHp8440p14 beatsG42DV51220TXN51108570PCQ35-219TXDV2804TXCQ45CQ40CQ42 285TX8560P2730p4321sDV7HP44318470P2570Penvy17j120usHP6450BHP 8470Pcq15-102tx/2570P/8460P
For Fujitsu
AH531/T731/S6420/T901/T5010/U9200/AH56/Gnh532
For Acer
5755G/3820TG/5920G/5620Z/5742G/6930/5620/1810TZ/5720G/1410 for Ferrari One/4752G/4750G/E1-471G/5750G/5951G/E1-571G/V3-571G/V5-472G/4315/V5-471G/V3-772G/4738G/4745G/E5-511G/5552G
For MSI
CX623/CR720/A6200-021US/CR630/M610/GX640/GE60
For Toshiba
R840/A665/L305-S5921/L300/A505-6965/L300/L305-S5921/M332/M780/L700/L650-02B/L800
For Clevo
M860T/UM570RU
For Sager
NP2096/NP8662/NP5793
For NEC
Versa E6500
For Asus
F8SA/X42JR/X59SL/1015PEM/M60J/Y581/CX81/x55v/X450VB/X450JS/x450c/N61JV/x402ca/U24E/r400/P53SJ/n75sl/n75s/N61JQ/N56/n55sf/n53/k56c/k55vd/K53SV/K52DR/k45vs/K43SM/a55vd/K42JB/K40IP/K40IN/g73sw/F83se/A73S/A55VM/A53/a450j/A43X/A43s/a42j/k55vm/k43/SDG74S/XN43sl/n55sl/k55vm/A45/K56CB/K43DK42kv/X55XI237VD-SL/X550VC/N81/VG X751L/A53S/A53SM/a450jf
For LG
P300
For Samsung
R780/NP300E4A/NP270E5J-K01CN/r428/rv420
For HASEE
A460-I7/K590C/A560P/K580P/A430/K470p/460P/A550/k602c/K590S/K500DE400/K500C-i7 /D1/k660E/A460p-i7/K480N
For Tsinghua University
u49fK41H/A14RM0C
For sky
p170em
For Haier
7g-2X5P
For Gigabyte
p15f V2
For Fangzhengyihe
a600
Graphics Card :
1. The list of recommended graphics card:
GTX650 GTX660 GTX670 GTX750 GTX760 GTX950
GTX960 GTX970 GTX980 GTX1060 GTX1070 GTX1080
And for other graphics cards, may be they can also be used, but the compatibility and performance are not as good as the cards in list. So we do not recommend to buy.
2. For GTX 1060 1070 1080
They are compatible with EXP GDC, but you must install the Auguest 2016 driver(372.70 version). And GTX 1080 is the most powerful we Recommend.
3. For GTX1030 GTX1050 GTX1050Ti GTX1070Ti GTX1080Ti
The technician tell us that these cards are new product and the drive is not perfectly to support this product. So, we do not recommend you to buy it.
