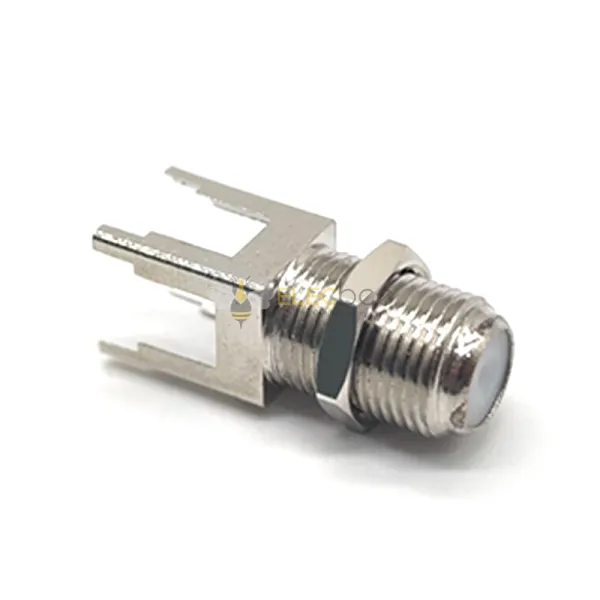

20pcs F Connector PCB Mount Straight Female 75Ohm for PCB
Features:
- Pcb Mount, Jack/female, Angled/90°, 75Ω, Bulkhead;
- Great security and tamper protection performance with screw on structure;
- Simple structure and component to produce F connectors in very competitive price;
- Less than 30 seconds required for wiring make it really easy to install;
- Can be visually inspect even after connection;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Material
Cooper
-
Terminal type
Solder Type
-
Gender
Female
-
direction
Straight
-
Polarity
Standard
-
Function
Other
-
Coating
Nickel Plating
-
Installation method
PCB Mount / Panel Mount
-
Installation characteristics
Bulkhead / Through Hole
-
Impedance
75 Ω
-
Outer conductor connection
Without
- Description
Main Application of F Connectors:
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks
Techinial Datasheet:
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3Ghz
- VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
- Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance ≦ 10 mΩ
- Outer Contact Resistance ≦ 5 mΩ
- Insultation Resistance ≧ 1000 mΩ
- RF Leakage -100dB min @1GHz
Mechanical Characteristics
- Coupling: 3/8-32 thread
- Cable Retention: 20 lbs min.
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Temprature Range: -40°C ~ +60°C
Material:
| Part | Material | Finish |
| BODY | Brass | NI:80-120u" |
| INSULATOR | PP | White |
| CENTER CONTACT | Phosphor | AU:1-3u" |
- Drawings
- Certificates
- Reviews (0)
-
comment
- Q & A
-
