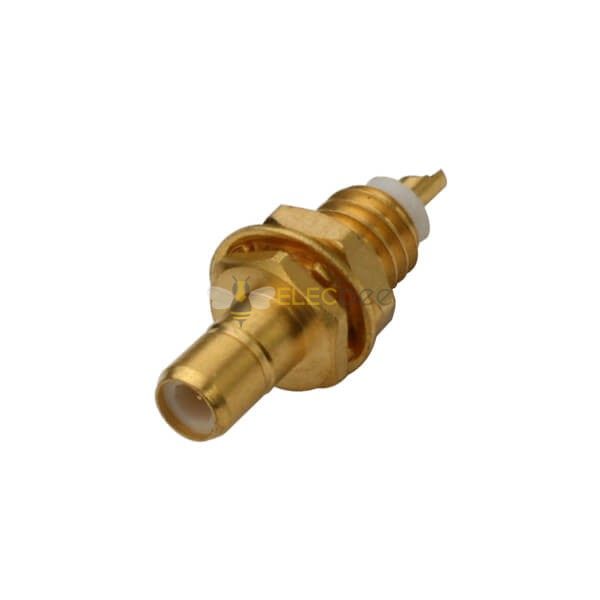

20pcs SMB Bulkhead Connector Straight Female for Panel Mount
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
Cable
-
Gender
Female
-
direction
Straight
-
Polarity
Standard
-
Terminal type
Solder Cup
-
Function
Other
-
Coating
Gold Plating
-
Installation characteristics
None
-
Impedance
50 Ω
-
Outer conductor connection
Solder
- Description
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~4 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:
1000 V rms min for RG316, RG402
750 V rms min. for RG178 - Working Voltage:
335 V rms max. for RG316, RG402
250 V rms max. for RG178 - Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance 1.5 mΩ (Milliohms max.)
- Insultation Resistance ≧ 1000 mΩ(Megohms min.)
Mechanical Characteristics
- Coupling: Snap-on
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -65°C ~ +155°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Gold |
| Center Contact Pin | Brass | Gold |
| Insulator | PTFE | ------ |
