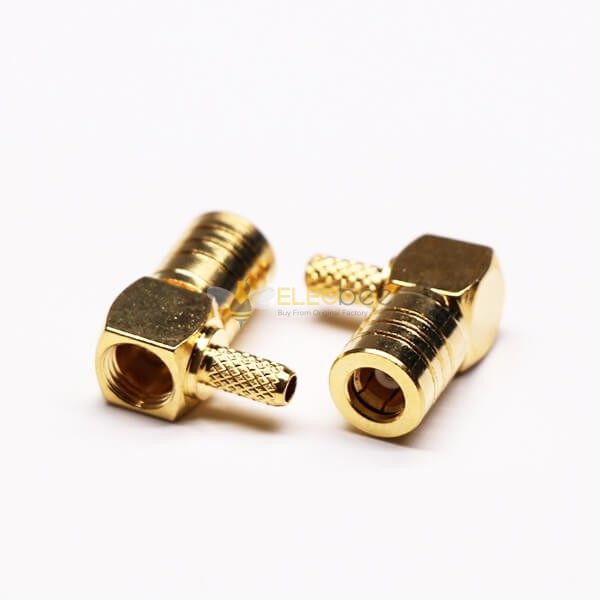

20pcs SMB Right Angle Connector Male Crimp Type for Cable

20pcs SMB Right Angle Connector Male Crimp Type for Cable

Name: 20pcs SMB Right Angle Connector Male Crimp Type for Cable
Brand: Elecbee
SKU: 20XEB-008-0061
Price: 51.84 USD
Availability: InStock
Rating: 160 / 34 (34 reviews)

$51.84

SKU: 20XEB-008-0061

Copy to clipboard

80 Sales

34 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

20pcs SMB Right Angle Connector Male Crimp Type for Cable

20XEB-008-0061

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Body Material

Cooper
Installation method

Cable
Terminal type

Solder Type
Gender

Male
Function

Dustproof
direction

Right Angle
Polarity

Standard
Coating

Gold Plating
Installation characteristics

None
Impedance

50 Ω
Outer conductor connection

Crimp

Description

Electrical Characteristics

Impedance：50 ohm
Frequency Range: 0~4 GHz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage:
1000 V rms min for RG316, RG402
750 V rms min. for RG178
Working Voltage:
335 V rms max. for RG316, RG402
250 V rms max. for RG178
Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance 1.5 mΩ (Milliohms max.)
Insultation Resistance ≧ 1000 mΩ(Megohms min.)

Mechanical Characteristics

Coupling: Snap-on
Contact Retention: 4 lbs min.
Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

Environmental Characteristics: -65°C ~ +155°C
Vibration: MIL-STD-202 Method204
Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part	Material	Finish
Body	Brass	Gold
Center Contact Pin	Brass	Gold
Insulator	PTFE	------
