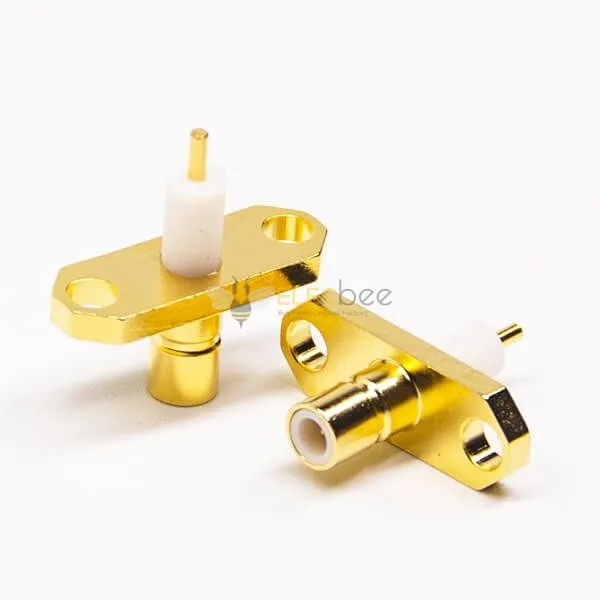

20pcs SMB Female Connectors Straight 2 Hole Flange Solder Type for Cable
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Terminal type
Solder Type
-
Gender
Female
-
Installation characteristics
2 Hole Flange
-
direction
Straight
-
Polarity
Standard
-
Function
Other
-
Coating
Gold Plating
-
Impedance
50 Ω
-
Installation method
Panel Mount / Cable
-
Outer conductor connection
Solder
- Description
Techinial Datasheet:
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance:3mW
- Outer Contact Resistance:25mW
- Insultation Resistance:5GW
Mechanical Characteristics
- Coupling: Snap-on
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -65°C ~ +165°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Gold |
| Center Contact Pin | Brass | Gold |
| Insulator | Teflon | White |
