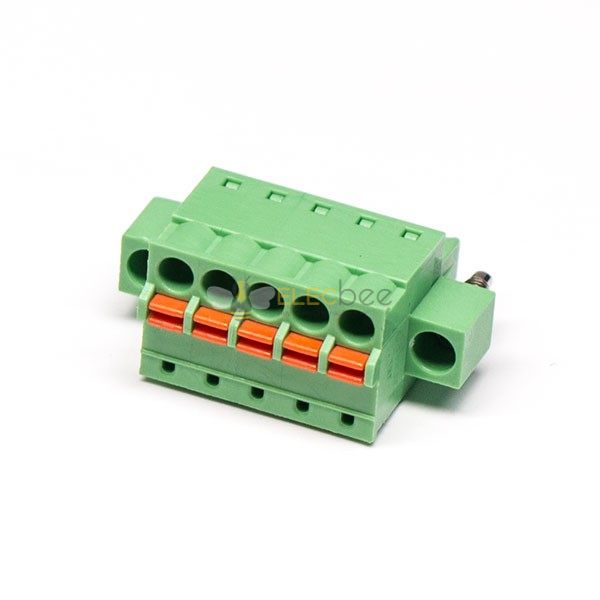

PCB Spring Terminal Blocks Connector Green Straight Through Hole

PCB Spring Terminal Blocks Connector Green Straight Through Hole

Name: PCB Spring Terminal Blocks Connector Green Straight Through Hole
Brand: Elecbee
SKU: EB-620-3002
Price: 3.29 USD
Availability: InStock

$3.90

SKU: EB-620-3002

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$3.13

10-19 PCS

$2.96

20-99 PCS

$2.63

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Pitch

- +

Product features:

PCB spring terminal blocks,Green,Straight,300V,10A,3.50/3.81mm,Through Hole,Cage Clamp Type,Cable Connector
round stick and single pitch terminal blocks can insert diretly with hand ship;
5.0 mm and 5.08 mm spring type side wire entry terminal blocks ；
provides a quick and easy way for installers in the field to mate wires without the use of special tools；
clamp wires in quickly and save both time and labor for a multitude of control and power wiring applications
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application

HVAC controls
Industrial controls
power supplies

Contact Sales

PCB Spring Terminal Blocks Connector Green Straight Through Hole

EB-620-3002

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Straight
Number of Positions

6 pin
Insulator Colour

green
Current

10A
Voltage

300V
Wiring Type

Cage Clamp Type
spacing

3.50mm/3.81mm

Description

Electrical Characteristics

Rate voltage:300V
Rate current:5A,7A,8A,10A,15A,20A
Poles:2P-30P
Withstanding voltage:AC2000V/1Min
Wire range:16-26AWG,20-26AWG
Insulation resistance:5000MΩ/1000V

Environmental Characteristics

Temperature range:-40°C ~ +105°C
MAX soldering:+250oC, sec

Material

Pin header:Brass,Tin plated
Reed：Stainless steel
Housing:PA66.UL94-0
