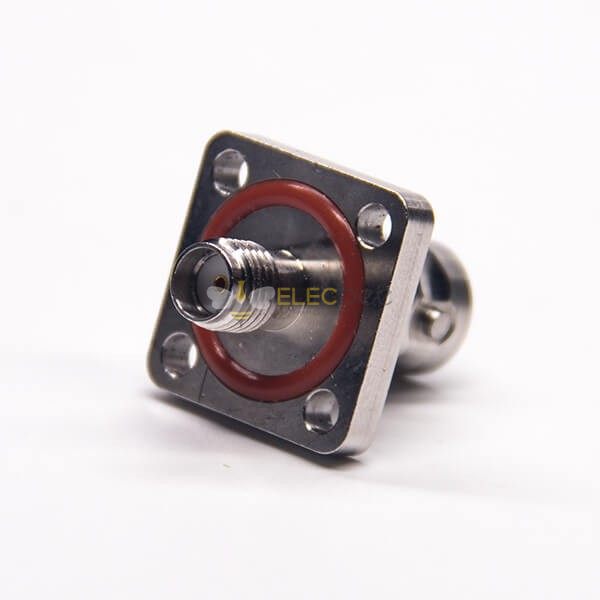

SMA Female to BNC Female Flange with 4 Holes High Frequency Adapter

SMA Female to BNC Female Flange with 4 Holes High Frequency Adapter

Name: SMA Female to BNC Female Flange with 4 Holes High Frequency Adapter
Brand: Elecbee
SKU: EB-204-8002
Price: 2.66 USD
Availability: InStock

$12.99

SKU: EB-204-8002

Copy to clipboard

96 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$2.53

10-19 PCS

$2.39

20-99 PCS

$2.13

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

High frequency connector,Microwave connector, Adapter,SMA,female,BNC,female,straight,standard,50 Ohm,flange,waterproof,stainless steel
Frequency range DC to 65 GHz
Low VSWR
Low Insertion Loss
Low RF LeakageSuperior reliability

Contact Sales

SMA Female to BNC Female Flange with 4 Holes High Frequency Adapter

EB-204-8002

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Connector A Type

SMA
Connector A Gender

Female
Connector B Type

BNC
Connector B Gender

Female

Description

Applications:

High Speed Digital
Instrumentation
Military
Aerospace
Satellite Communication Equipment (SATCOM)
Cable Assemblies
Test and measurement

Electrical Characteristics

Impedance: 50 Ohm
Frequency range: DC~65 GHz
Voltage rating: 150 V(rms)
Center contact resistance: <4.0mΩ
Outer contact resistance: <2.5mΩ
Insertion loss: <.05 sqrt(f(GHz)) dB
VSWR: <1.25

Mechanical Characteristics

Center contact retention force: >20 N
Coupling test torque: 1.65 Nm
Recommended torque: 0.8 Nm to 1.10 Nm
Durability: >500 cycles

Environmental Characteristics

Temperature Range：-40°C to +85°C
