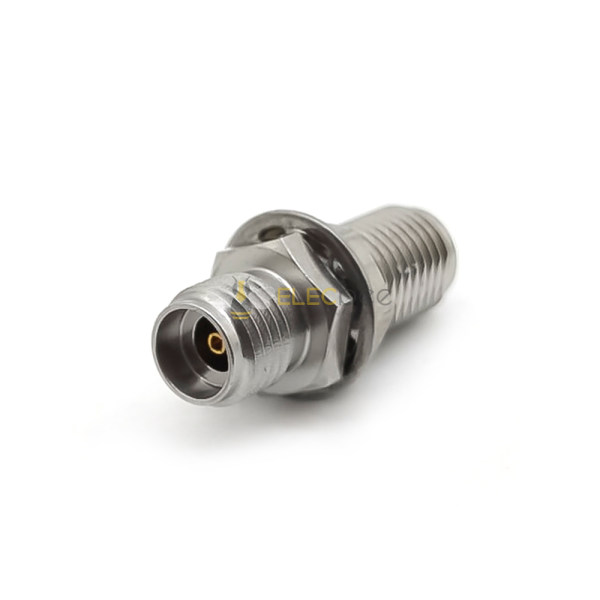

Bulkhead 2.92mm Female to 2.92 Female High Frequency Adapter UP To 40G

Bulkhead 2.92mm Female to 2.92 Female High Frequency Adapter UP To 40G

Name: Bulkhead 2.92mm Female to 2.92 Female High Frequency Adapter UP To 40G
Brand: Elecbee
SKU: EB-204-8016
Price: 50.18 USD
Availability: InStock

$50.18

SKU: EB-204-8016

Copy to clipboard

124 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$47.67

10-19 PCS

$45.16

20-99 PCS

$40.14

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

High frequency connector,Microwave connector, Adapter,2.92mm,female,2.92mm ,female,straight,standard,50 Ohm,stainless steel
Frequency range DC to 65 GHz
Low VSWR
Low Insertion Loss
Low RF LeakageSuperior reliability

Contact Sales

Bulkhead 2.92mm Female to 2.92 Female High Frequency Adapter UP To 40G

EB-204-8016

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Gender

Female
Gender

Female
Connector A Type

2.92mm
Connector B Type

2.92mm

Description

Applications:

High Speed Digital
Instrumentation
Military
Aerospace
Satellite Communication Equipment (SATCOM)
Cable Assemblies
Test and measurement

Electrical Characteristics

Impedance: 50 Ohm
Frequency range: DC~65 GHz
Voltage rating: 150 V(rms)
Center contact resistance: <4.0mΩ
Outer contact resistance: <2.5mΩ
Insertion loss: <.05 sqrt(f(GHz)) dB
VSWR: <1.25

Mechanical Characteristics

Center contact retention force: >20 N
Coupling test torque: 1.65 Nm
Recommended torque: 0.8 Nm to 1.10 Nm
Durability: >500 cycles

Environmental Characteristics

Temperature Range：-40°C to +85°C
