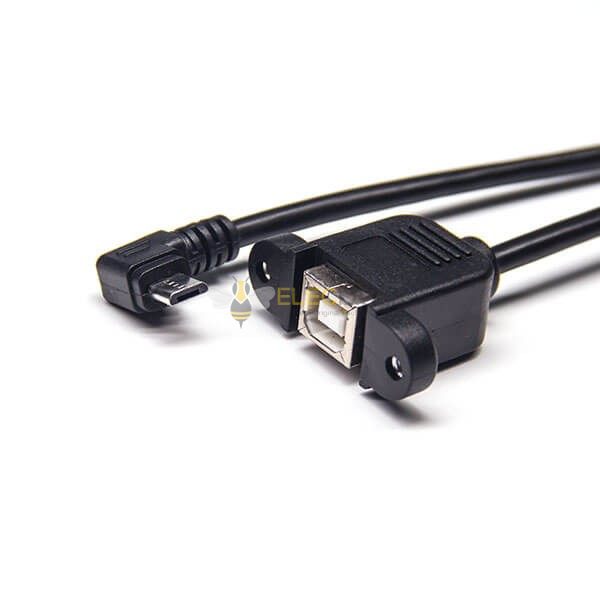

Micro USB Male Right Angle to Type B Female Straight
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Type
Micro USB
-
Connector A Gender
Male
-
Connector A Direction
Right Angle
-
Connector B Type
Type B
-
Connector B Gender
Female
-
Connector B Direction
Straight
- Description
Electrical Characteristics
- Connector plating:Gold-plated ,Nickel-plated
- Wire core: pure copper
- Conductor : Bare copper ,Tinned copper or optional
- Over mold:PVC 80Pa ,UL94V-0 Black
- Pre mold: PE Low Density
- Jacket Color: BLUE,BLACK,WHITE or optional
Mechanical Characteristics
- Withdraw Force：10N Min
- Insertion Force： 35N Max
- Contact Resistance：0.01 OHM Max
- Insulation Resistance： 10M OHM /300V Min
- Hi-Pot : DC 300V 10ms
- Compatibility: USB 2.0&USB3.0
Environmental Characteristics
- Temperature Range：-25°C~ +85°C
