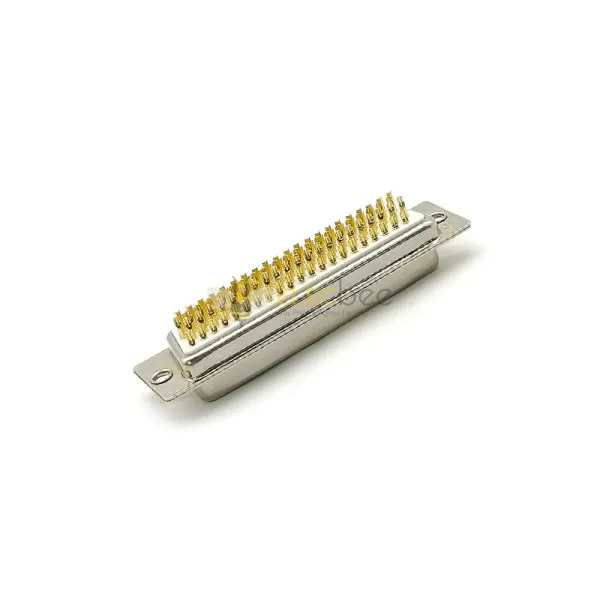

Buy D sub High Density Female Straight Staking type Cable Connector Solder Connector

Buy D sub High Density Female Straight Staking type Cable Connector Solder Connector

Name: Buy D sub High Density Female Straight Staking type Cable Connector Solder Connector
Brand: Elecbee
SKU: EB-602-0025
Price: 43.86 USD
Availability: InStock

$3.50

SKU: EB-602-0025

Copy to clipboard

98 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$41.67

10-19 PCS

$39.47

20-99 PCS

$35.09

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-sub,High Density,Straight/180°,Female/Jack,104Pin,Staking type,Cable Connector,Solder Type,White
Metal shell provides EMI/RFI shielding;
High density design maximizes board space;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

Buy D sub High Density Female Straight Staking type Cable Connector Solder Connector

EB-602-0025

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
direction

Straight
Terminal type

Solder Cup
Continuous plating

machined pin
filter

No
Connector Type

Socket
Port number

Single
Installation characteristics

Shell (Unthreaded)
waterproof level

Not Waterproof
Continuous plating

Gold
Number of Positions

104pin
Number of Rows

5

Description

Applications:

data transmission
Consumer Electronics
telecommunications
measurement
regulation and control devices
Military Equipment

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black/White
