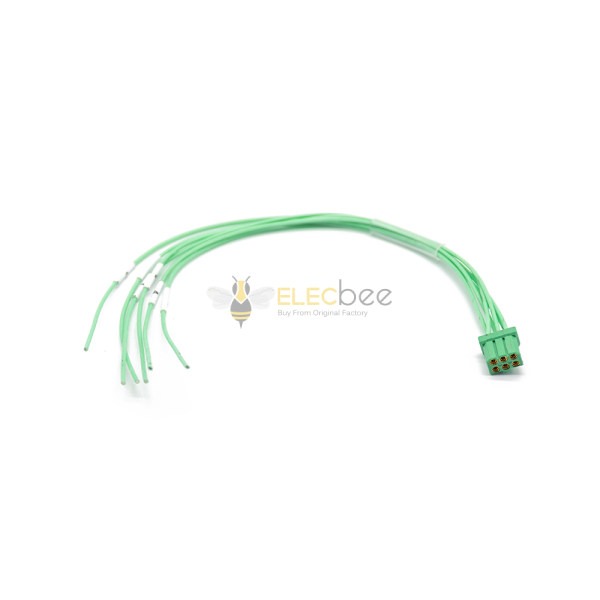

JL23, Printed Circuit Sigle-Ended Cable, 6-Pin Female Soket with 10cm Cable

JL23, Printed Circuit Sigle-Ended Cable, 6-Pin Female Soket with 10cm Cable

Name: JL23, Printed Circuit Sigle-Ended Cable, 6-Pin Female Soket with 10cm Cable
Brand: Elecbee
SKU: EB-JL23-6TKY-100
Price: 7.14 USD
Availability: InStock

$4.66

SKU: EB-JL23-6TKY-100

Copy to clipboard

85 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$6.78

10-19 PCS

$6.43

20-99 PCS

$5.71

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

plug,2,6,2.54mm,Solder Cup,Straight,10cm,green,3.0A,300V,1000V AC,≤10mΩ,5000 MΩ Min,-65℃~+125℃,Gold,PA66,UL94 V-0

The jack adopts a Φ0.76 single-leaf rotary hyperbolic wire spring hole structure, the contact is gold-plated, and the performance is reliable;

Standard double row 2.54mm spacing, board-to-wire connection, wire core cross-section area 0.15mm2~0.2mm2 (default supply);

High quality original factory shipment, 30-day worry-free return and exchange;

From brand OEM original factory wholesale, same quality, more affordable price

Contact Sales

JL23, Printed Circuit Sigle-Ended Cable, 6-Pin Female Soket with 10cm Cable

EB-JL23-6TKY-100

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
direction

Straight
spacing

2.54mm
Rated current

3.0A
Rated Voltage

300V
colour

green
Cable Length

10cm
core number

6
working temperature

-65℃~+125℃
Flame retardant grade

UL94 V-0
contact resistance

≤10mΩ
electrical insulation resistance

5000 MΩ Min
Contact Plating

Gold
Contact Termination

Solder Cup
Connector Type

plug
Interface row number

2
Withstand voltage

1000V AC
Insulation Materials

PA66

Description

Main technical indicators

Ambient temperature: -55℃~+125℃

Impact: acceleration 980m/s2

Rated current: 3A

Mechanical life: 500 times

Contact resistance: ≤10MΩ

Relative humidity: 90%~95%(40±2℃)

Insulation resistance: normal temperature ≥5000MΩ damp heat ≥100MΩ

Break time: ≤1μs

Dielectric withstand voltage: 100V (normal)

Vibration Dynamic: 10Hz~2000Hz 147m/s2
