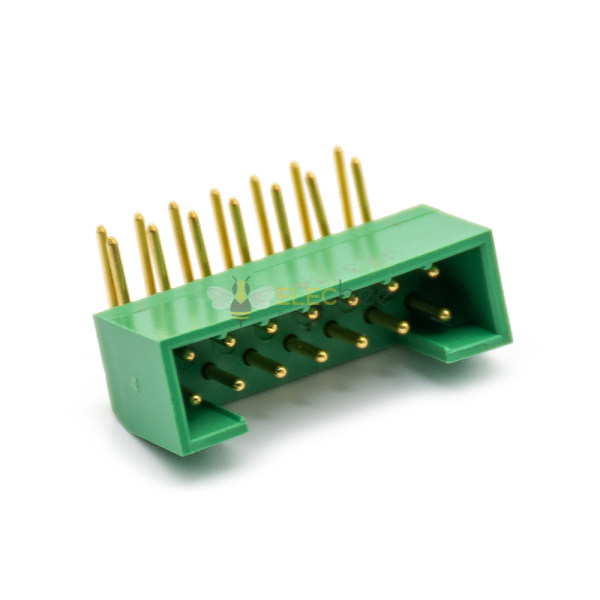

JL23, Printed Circuit Connector, 14-Pin Male Soket, 90° Angle, Through Hole

JL23, Printed Circuit Connector, 14-Pin Male Soket, 90° Angle, Through Hole

Name: JL23, Printed Circuit Connector, 14-Pin Male Soket, 90° Angle, Through Hole
Brand: Elecbee
SKU: EB-JL23-14ZJW
Price: 7.43 USD
Availability: InStock

$7.43

SKU: EB-JL23-14ZJW

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$7.06

10-19 PCS

$6.69

20-99 PCS

$5.94

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

sockets,2,14,2.54mm,PCB Soldering,90° Bend,green,3.0A,300V,1000V AC,≤10mΩ,5000 MΩ Min,-65℃~+125℃,Gold,PA66,UL94 V-0

The jack adopts a Φ0.76 single-leaf rotary hyperbolic wire spring hole structure, the contact is gold-plated, and the performance is reliable;

Standard double row 2.54mm spacing, board-to-wire connection, wire core cross-section area 0.15mm2~0.2mm2 (default supply);

High quality original factory shipment, 30-day worry-free return and exchange;

From brand OEM original factory wholesale, same quality, more affordable price

Contact Sales

JL23, Printed Circuit Connector, 14-Pin Male Soket, 90° Angle, Through Hole

EB-JL23-14ZJW

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
direction

90° Bend
spacing

2.54mm
Rated current

3.0A
Rated Voltage

300V
colour

green
Cable Length

10cm
core number

14
working temperature

-65℃~+125℃
Flame retardant grade

UL94 V-0
contact resistance

≤10mΩ
electrical insulation resistance

5000 MΩ Min
Contact Plating

Gold
Contact Termination

PCB Soldering
Connector Type

sockets
Interface row number

2
Withstand voltage

1000V AC
Insulation Materials

PA66

Description

Main technical indicators

Ambient temperature: -55℃~+125℃

Impact: acceleration 980m/s2

Rated current: 3A

Mechanical life: 500 times

Contact resistance: ≤10MΩ

Relative humidity: 90%~95%(40±2℃)

Insulation resistance: normal temperature ≥5000MΩ damp heat ≥100MΩ

Break time: ≤1μs

Dielectric withstand voltage: 100V (normal)

Vibration Dynamic: 10Hz~2000Hz 147m/s2
