BD-24 power 3-pin female chassis metal type 500 V 25 A IP65 Screw terminal

BD-24 power 3-pin female chassis metal type 500 V 25 A IP65 Screw terminal

Name: BD-24 power 3-pin female chassis metal type 500 V 25 A IP65 Screw terminal
Brand: Elecbee
SKU: EB-BD-24-J03SX-23-301
Price: 13.92 USD
Availability: InStock

$0,50

SKU: EB-BD-24-J03SX-23-301

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Protection class: Tested for IP65 by ELECBEE

Typ:BD-24 Series Chassis Socket female

High Quality with 30 days 100% Money back

From the OEM Original Factory, same quality with much better price

Contact Sales

BD-24 power 3-pin female chassis metal type 500 V 25 A IP65 Screw terminal

EB-BD-24-J03SX-23-301

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Description

Product information "BD-24 power 3-pin female chassis metal type 500 V 25 A IP65 Screw terminal"

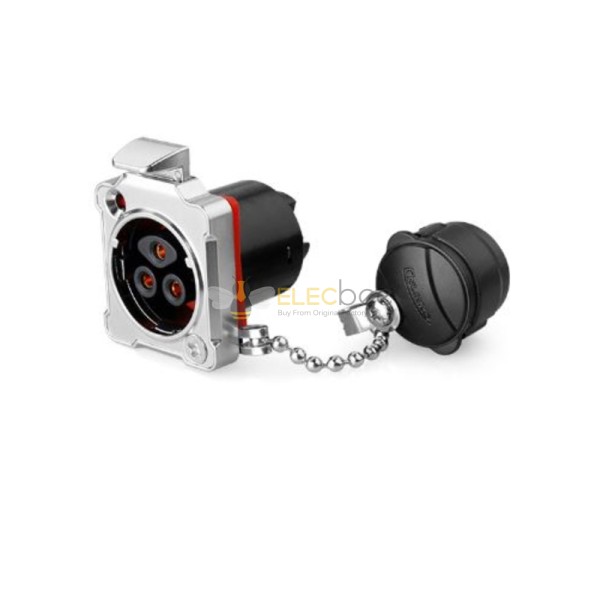

3 pole power mains socket with protective cover and mounting accessories. Chassis socket suitable for fast and safe power transmission. The contacts are connected to the cable via screw terminals.
The BD series is our newly developed streamline style series products.
The direct locking ensures a more stable connection, more convenient operation, and longer service life.
The safe built-in socket for power transmission in an industrial environment with a width of 30 mm.
The maximum rated power for the power plug is 25 amperes.
The maximum operating voltage from the mains plug is designed for 500 volts.
Depth: 38.2 mm
Width: 30mm
Height: 39.8 mm

Brand:	ELECBEE
Series:	BD-Serie
Version (Plug / Chassis):	Chassis version
Connector type:	Power
Connection mode:	Quick-lock, Druckknopf am Chassis
Number of contacts:	3
Contact diameter in mm:	3 x Ø 3.00 mm
Connector housing color:	Nickel - Red - Black
Cable diameter min. in mm:	Ø 4 mm
Cable diameter max. in mm:	Ø 14 mm
Cable connection size min. in mm:	Ø 2.5 mm
Cable connection size max. in mm:	Ø 4 mm
Wiring mode:	Screw contact
Installation diameter in mm:	Ø 24.00 mm
Installation fixing height x width in mm:	24.00 mm x 19.00 mm
Number of mounting holes:	2
Mounting hole diameter mm:	3.2 mm
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	1700
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IP65, IP67
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	2500 V
Operating voltage (VAC.RMS):	500 V
max. Rated current (A):	25 A
Insulation resistance:	500 MΩ
Contact resistance:	< 5.0 mΩ
POS packaging:	No
Markets:	Event Production, Cable Assembly, LED exterior display, Power supply, power storage
Certified standards:	UL1977, CE EN60309-1, TÜV
