LP-16 multicore chassis connector M16 7-pin female round 250 V 5 A IPX8

LP-16 multicore chassis connector M16 7-pin female round 250 V 5 A IPX8

Name: LP-16 multicore chassis connector M16 7-pin female round 250 V 5 A IPX8
Brand: Elecbee
SKU: EB-LP-16-J07SX-02-101
Price: 4.16 USD
Availability: InStock

$168,00

SKU: EB-LP-16-J07SX-02-101

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

protection class:IPX8 certified

Typ:LP-16 series Chassis Socket female

High Quality with 30 days 100% Money back

From the OEM Original Factory, same quality with much better price

Contact Sales

LP-16 multicore chassis connector M16 7-pin female round 250 V 5 A IPX8

EB-LP-16-J07SX-02-101

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Description

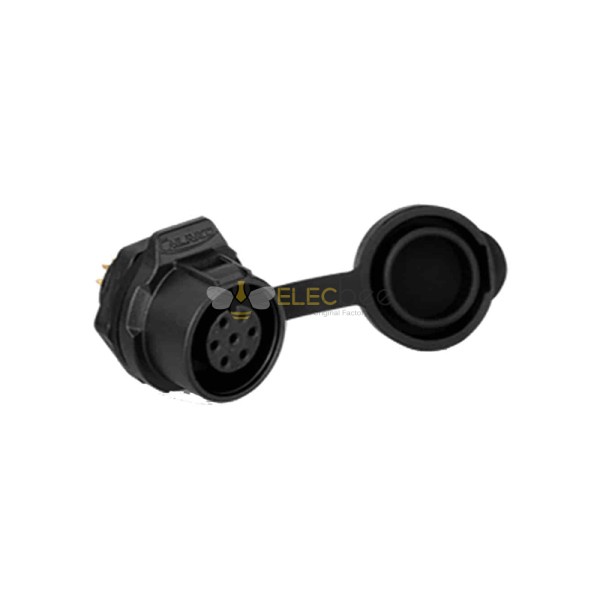

Product information "LP-16 multicore chassis connector M16 7-pin female round 250 V 5 A IPX8"

7 pole chassis plug female max. 5 A / 250 V. Seven contact sockets: 7 x Ø 1.00 mm.
IP67 chassis socket as a panel mounting version in the plastic housing in the LP series with the size 16.
The cable connection size is 1 mm (AWG 18) to 1.5 mm (AWG 16)
The secure panel socket for voltage transmission in industrial environments with a width of 25.1 mm.
The black plastic construction with gold plated contacts ensures a long life.
The connector is waterproof and dustproof according to IP67 protection class.
The metal lock ensures a secure connection and protects against data and power interruption.
The maximum rated power for the mains coupling is max. 5 amps.
The max. Operation Voltage from the power plug is rated at 250 volts.
The quick connector design allows insertion and removal with one hand.
Depth: 26 mm
Width: 25.1 mm
Height: 26.1 mm

Brand:	ELECBEE
Series:	LP-Serie, LP-16
Version (Plug / Chassis):	Chassis version
Connector type:	Multicore
Connection mode:	Push-button latch
Number of contacts:	7
Contact diameter in mm:	7 x Ø 1.00 mm
Gender (M / F):	Female connector
Connector housing color:	Black
Cable diameter min. in mm:	Ø 1 mm
Cable diameter max. in mm:	Ø 8.5 mm
Cable connection size min. in mm:	Ø 1 mm
Cable connection size max. in mm:	Ø 1.5 mm
Cable connection size min. in AWG:	AWG 18
Cable connection size max. in AWG:	AWG 16
Wiring mode:	Solder contact
Installation diameter in mm:	Ø 16.50 mm, Ø 18.50 mm
Insulation component:	High performance plastics
Material connector housing:	Zinc alloy (nickel plated)
Material contact:	Copper alloy (gold plated)
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	≥ 1700
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IP65, IP67
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	1500 V
Operating voltage (VAC.RMS):	250 V
max. Rated current (A):	5 A
Insulation resistance:	500 MΩ
Contact resistance:	< 5 mΩ
POS packaging:	No
Markets:	Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction
Certified standards:	UL1977, CE EN60309-1, TÜV
