Description

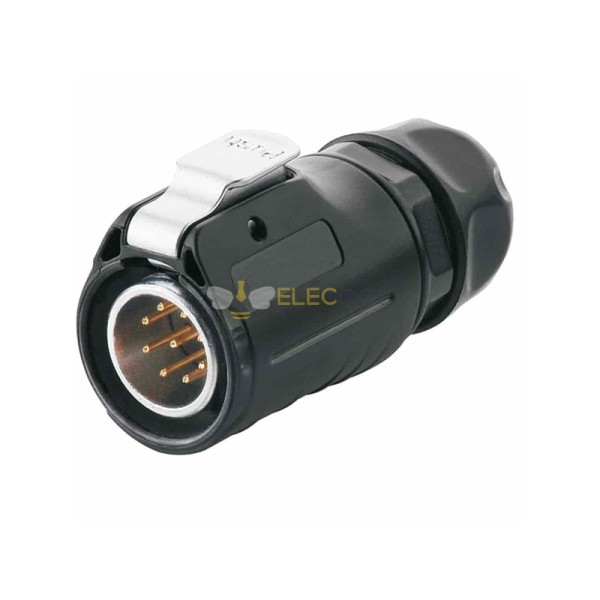

Product information "LP-20 multicore connector M20 9-pin male plug 400 V 5 A IPX8"

9 pin cable plug max. 5 A / 400 V. Nine contact pins: 9 x Ø 1.00 mm.
IPX8 power plug in plastic housing in LP series with size 20.
The 9 pin plug is suitable for Ø 1 - 8.5 mm cable. The plug has the IP protection with a cable Ø of 5 - 9 mm.
The cable connection size is 2.5 mm (AWG 14) to 5 mm (AWG 12).
The industrial plug can be assembled with the cable via solder connection.
The lightweight power connector for voltage transmission in industrial environments with a length of 65 mm.
The black plastic construction with gold-plated contacts ensures a long service life.
The connector is waterproof and dustproof according to IPX8 protection class.
The metal latch provides a secure connection and protects against data and power interruption.
The maximum power rating for the power plug is 5 amps.
The max. operating voltage of the mains plug is designed for 400 volts.
The 9-pin multipin plug has a push-button locking mechanism. The quick plug design allows plugging and unplugging with one hand.
Length: 65 mm
Height: 35 mm

Brand:	ELECBEE
Series:	LP-Serie, LP-20
Version (Plug / Chassis):	Cable Version
Connector type:	Multicore
Connection mode:	Push-button latch
Number of contacts:	9
Contact diameter in mm:	9 x Ø 1.00 mm
Gender (M / F):	Male plug
Connector housing color:	Black - nickel locking
Cable diameter min. in mm:	Ø 1 mm
Cable diameter max. in mm:	Ø 8.5 mm
Cable connection size min. in mm:	Ø 2.5 mm
Cable connection size max. in mm:	Ø 4 mm
Cable connection size min. in AWG:	AWG 14
Cable connection size max. in AWG:	AWG 12
Wiring mode:	Solder contact
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	≥ 500
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IPX8 certified
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	1500 V
Operating voltage (VAC.RMS):	400 V
max. Rated current (A):	5 A
Insulation resistance:	500 MΩ
Contact resistance:	< 5.0 mΩ
POS packaging:	No
Markets:	Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Lighting, LED exterior display, System integrator, Power supply, power storage, Outdoor lighting
Certified standards:	UL1977, CE EN60309-1, TÜV
