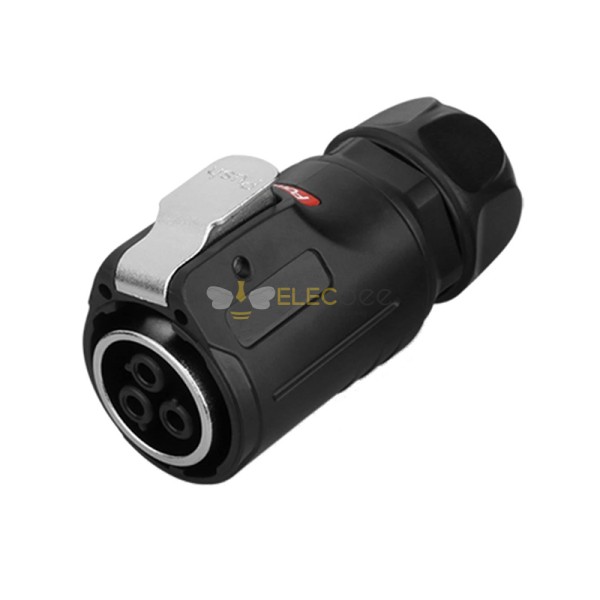

LP-24 power connector 3 pin female max. 500 V 25 A IP67

LP-24 power connector 3 pin female max. 500 V 25 A IP67

Name: LP-24 power connector 3 pin female max. 500 V 25 A IP67
Brand: Elecbee
SKU: EB-LP-24-J03PE-01-001
Price: 11.96 USD
Availability: InStock

$11.96

SKU: EB-LP-24-J03PE-01-001

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

protection class:IP67 certified

Typ:LP-24 Series Cable Connector female

High Quality with 30 days 100% Money back

From the OEM Original Factory, same quality with much better price

Contact Sales

LP-24 power connector 3 pin female max. 500 V 25 A IP67

EB-LP-24-J03PE-01-001

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Description

Product information "LP-24 power connector 3 pin female max. 500 V 25 A IP67"

3 pin cable connector female max. 25 A / 500 V. Three contact sockets: 3 x Ø 3.00 mm.
IP67 power connector in plastic housing in LP series with size 24. Power industrial plug IP67 with a push-button lock for safe power transmission.
The power plug female is suitable for Ø 4 - 14 mm cable. The IP protection has the plug coupling with a cable Ø of 7 - 14.5 mm.
The cable connection size is 2.5 mm (AWG 14) to 4 mm (AWG 12)
The 3 pin connector can be assembled with the cable via solder connection.
The lightweight power connector for voltage transmission in industrial environment with a length of 77 mm.
The black plastic construction with gold-plated contacts ensures a long service life.
The 3-pole connector is waterproof and dustproof according to IP67 protection class.
The metal latch provides a secure connection and protects against data and power interruption.
The maximum power rating for the mains connector is 25 amps.
The max. operating voltage from the mains plug is rated at 500 volts.
De industrial plug has a quick-connect design. The quick plug design allows plugging and unplugging with one hand.
Length: 77 mm

Brand:	ELECBEE
Series:	LP-Serie, LP-24-Serie, LP-24-Power
Version (Plug / Chassis):	Cable Version
Connector type:	Power
Connection mode:	Push-button latch
Number of contacts:	3
Contact diameter in mm:	3 x Ø 3.00 mm
Gender (M / F):	Female connector
Connector housing color:	Black -- Red
Cable diameter min. in mm:	Ø 4 mm
Cable diameter max. in mm:	Ø 14 mm
Cable connection size min. in mm:	Ø 2.5 mm
Cable connection size max. in mm:	Ø 4 mm
Cable connection size min. in AWG:	AWG 14
Cable connection size max. in AWG:	AWG 12
Wiring mode:	Solder contact
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	≥ 500
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IP67
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	2500 V
Operating voltage (VAC.RMS):	500 V
max. Rated current (A):	25 A
Insulation resistance:	500 MΩ
Contact resistance:	< 1 mΩ
POS packaging:	No
Certified standards:	UL1977, CE EN60309-1, TÜV
