Product information "LP-28 Multipin chassis connector 8 pin female max. 500 V 15 A"

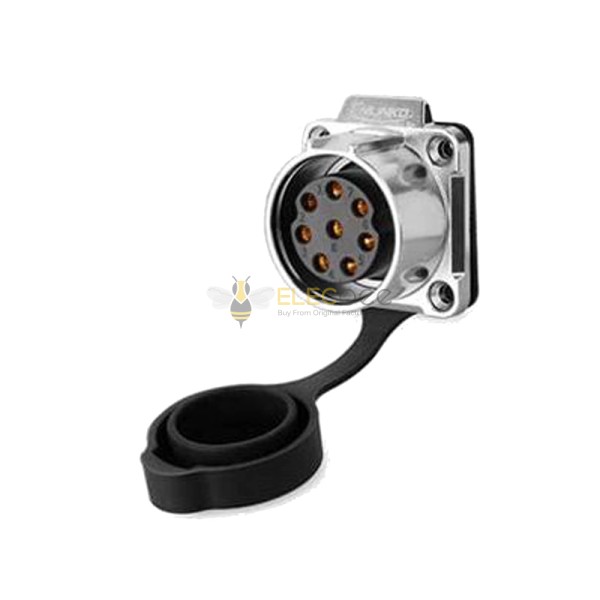

8 pole panel jack max. 15 A / 500 V. Eight contact sockets: 8 x Ø 3.00 mm.
IP67 female chassis connector in metal housing in LP series with size 28.
The cable connection size is 2.5 mm (AWG 14) to 5 mm (AWG 12).
The 8 pin multipin chassis connector can be assembled with the cable via screw connection.
The industrial connector is water- and dustproof according to IP67 protection class. The chassis connector is supplied with protective cover and mounting screws.
The metal latch provides a secure connection and protects against data and power interruption.
The maximum power rating for the power coupler is 15 amps.
The max. operating voltage from the mains plug is rated at 500 volts.
Depth: 39.8 mm
Width: 37 mm
Height: 42 mm

Brand:	ELECBEE
Series:	LP-28, LP-Serie
Version (Plug / Chassis):	Chassis version
Connector type:	Power
Connection mode:	Push-button latch
Number of contacts:	8
Contact diameter in mm:	8 x Ø 3.00 mm
Gender (M / F):	Female connector
Cable connection size min. in mm:	Ø 2.5 mm
Cable connection size max. in mm:	Ø 5 mm
Cable connection size min. in AWG:	AWG 14
Cable connection size max. in AWG:	AWG 12
Wiring mode:	Screw contact
Installation diameter in mm:	Ø 28.00 mm
Installation fixing height x width in mm:	28.00 mm x 28.00 mm
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	≥ 500
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IP67
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	1500 V
Operating voltage (VAC.RMS):	500 V
max. Rated current (A):	15 A
Insulation resistance:	500 MΩ
Contact resistance:	< 40 mΩ
POS packaging:	No
Certified standards:	UL1977, CE EN60309-1, TÜV
