YM-20 Power Panel Connector M20 3 pin male max. 500 V 20 A IP67

YM-20 Power Panel Connector M20 3 pin male max. 500 V 20 A IP67

Name: YM-20 Power Panel Connector M20 3 pin male max. 500 V 20 A IP67
Brand: Elecbee
SKU: EB-YM-20-C03SX-02-401
Price: 6.05 USD
Availability: InStock

$6.05

SKU: EB-YM-20-C03SX-02-401

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

protection class:IP67 certified

Typ:YM-20 Series Chassis Socket male

High Quality with 30 days 100% Money back

From the OEM Original Factory, same quality with much better price

Contact Sales

YM-20 Power Panel Connector M20 3 pin male max. 500 V 20 A IP67

EB-YM-20-C03SX-02-401

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Description

Product information "YM-20 Power Panel Connector M20 3 pin male max. 500 V 20 A IP67"

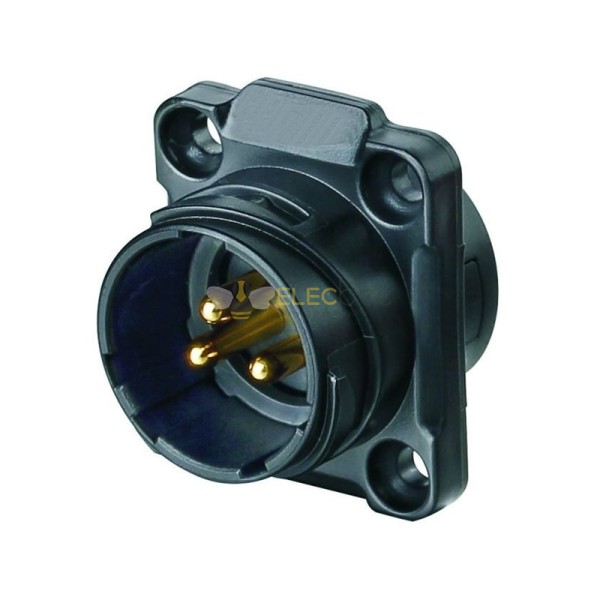

3 pin chassis connector male max. 25 A / 500 V. Three contact pins: 3 x Ø 2.70 mm.
IP67 chassis connector as panel mounting version in PBT plastic housing in YM series with size 20.
The cable connection size is 2.5 mm (AWG 14) to 4 mm (AWG 12).
The industrial connector can be assembled with the cable via solder connection.
The safe panel jack for voltage transmission in industrial environment with a width of 26.5 mm.
The connector is waterproof and dustproof according to IP67 protection class.
The YM series with a connector housing made of PBT plastic to ensure high stability and multi-core structures.
The connector is waterproof and dustproof according to IP67 protection class.
The secured threaded connection on the plastic socket protects against signal interruption and power interruption.
The maximum power rating for the chassis connector is 20 amps.
The max. operating voltage from the chassis connector is rated at 500 volts.
The series production of YM connectors is suitable for several applications.
Depth: 23.9 mm
Width: 26.5 mm
Height: 24 mm

Brand:	ELECBEE
Series:	YM-Serie, YM-20
Version (Plug / Chassis):	Chassis version
Connector type:	Power
Connection mode:	Gewindeanschluss
Number of contacts:	3
Gender (M / F):	Male plug
Connector housing color:	Black
Cable diameter min. in mm:	Ø 1 mm
Cable diameter max. in mm:	Ø 11.5 mm
Cable connection size min. in mm:	Ø 2.5 mm
Cable connection size max. in mm:	Ø 4 mm
Cable connection size min. in AWG:	AWG 14
Cable connection size max. in AWG:	AWG 12
Wiring mode:	Solder contact
Installation diameter in mm:	Ø 22.50 mm
Installation fixing height x width in mm:	24.00 mm x 19.00 mm
Number of mounting holes:	4
Mounting hole diameter mm:	3.2 mm
Insulation component:	High performance plastics
Waterproof component:	Silicagel
Working temperature minimum:	-40°
Working temperature maximum:	+80°
Plug cycle:	1700
Salt spray test:	PH 6.2 - 7.2, NaCI 1.5% 48h
IP protection class according to EN60529 2000:	IP67
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	China
high voltage rating (VAC):	1500 V
Operating voltage (VAC.RMS):	500 V
max. Rated current (A):	20 A
Insulation resistance:	500 MΩ
Contact resistance:	< 1 mΩ
POS packaging:	No
Markets:	LED interior / exterior lighting, 3D printer, Monitors, Industry, Mechanical engineering, Devices construction, Plant construction, Multimedia installation, Digital signage, LED exterior display
Certified standards:	UL1977, CE EN60309-1, TÜV
